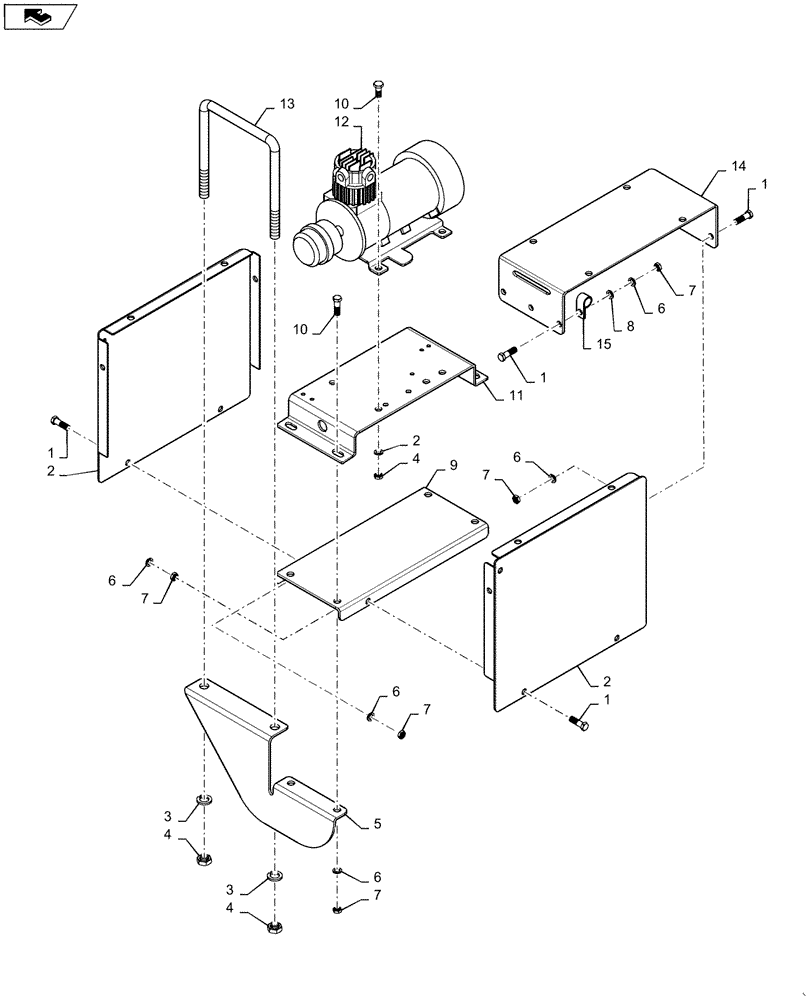

Запчасти Case IH 4025 (39.100.AB[04]) - ROW-PRO COMPRESSOR MOUNTING (39) - FRAMES AND BALLASTING

1

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

73359068

COVER

COMPRESSOR COVER SIDE

2шт.

3

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

4

86625068

NUT,5/8"-11, G8

2шт.

5

73358909

BRACKET

COMPRESSOR MOUNT

1шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

7

280136

NUT,3/8"-16, G8

6шт.

8

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

9

73359004

PLATE

MOUNT PLATE

1шт.

10

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11

73357632

MOUNT

COMPRESSOR

1шт.

12

73358140

AIR COMPRESSOR

12V

1шт.

13

73358608

U-BOLT

2шт.

14

73358854

COVER

12 COMPRESSOR COVER TOP

1шт.

15

73357817

CLIP

1шт.
