(55.404.BM[04]) - BULK FILL WORK LIGHTS HARNESS, 2160

Запчасти Case IH 2160 (55.404.BM[04]) - BULK FILL WORK LIGHTS HARNESS, 2160 (55) - ELECTRICAL SYSTEMS

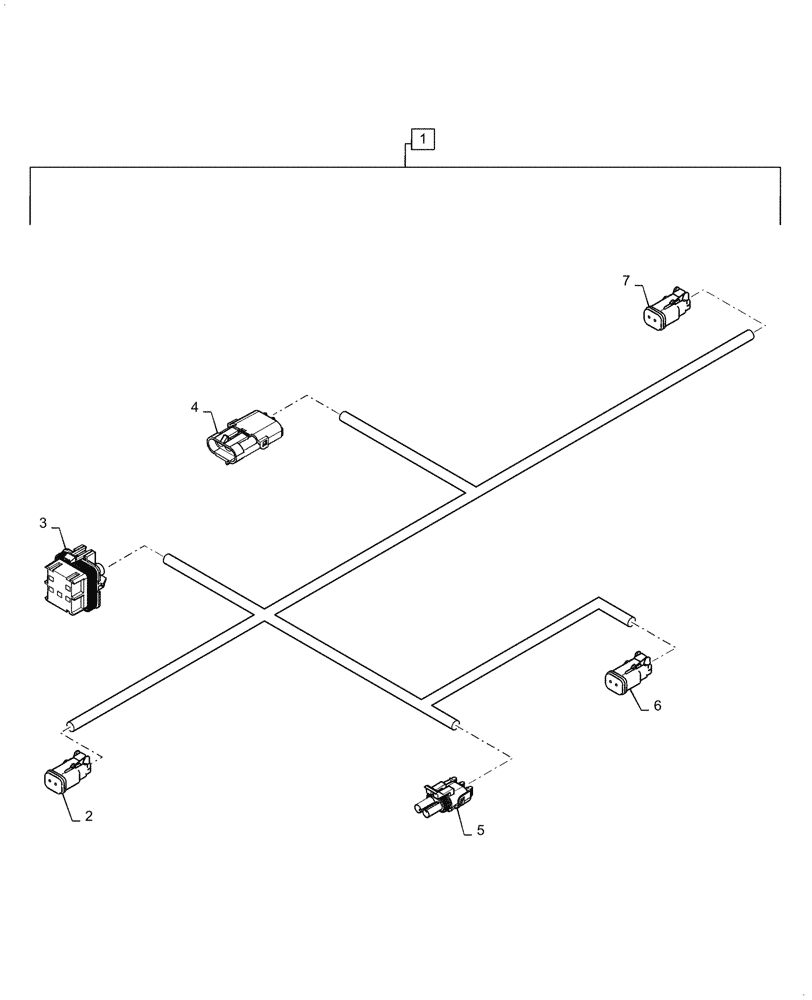

Схема запчастей Case IH 2160 - (55.404.BM[04]) - BULK FILL WORK LIGHTS HARNESS, 2160 (55) - ELECTRICAL SYSTEMS
1
5
2
4
7
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48007897

WIRE HARNESS

Bulkfill Lighting, Incl 2 - 7

1шт.

2

87695582

ELEC CONNECTOR,Female, 2 Pole

LH Work Lamp

1шт.

3

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

Relay

1шт.

4

87692858

ELEC CONNECTOR,Male

Bulk Fill Lights

1шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

Switch

1шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Center lamp

1шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Work Lamp

1шт.
