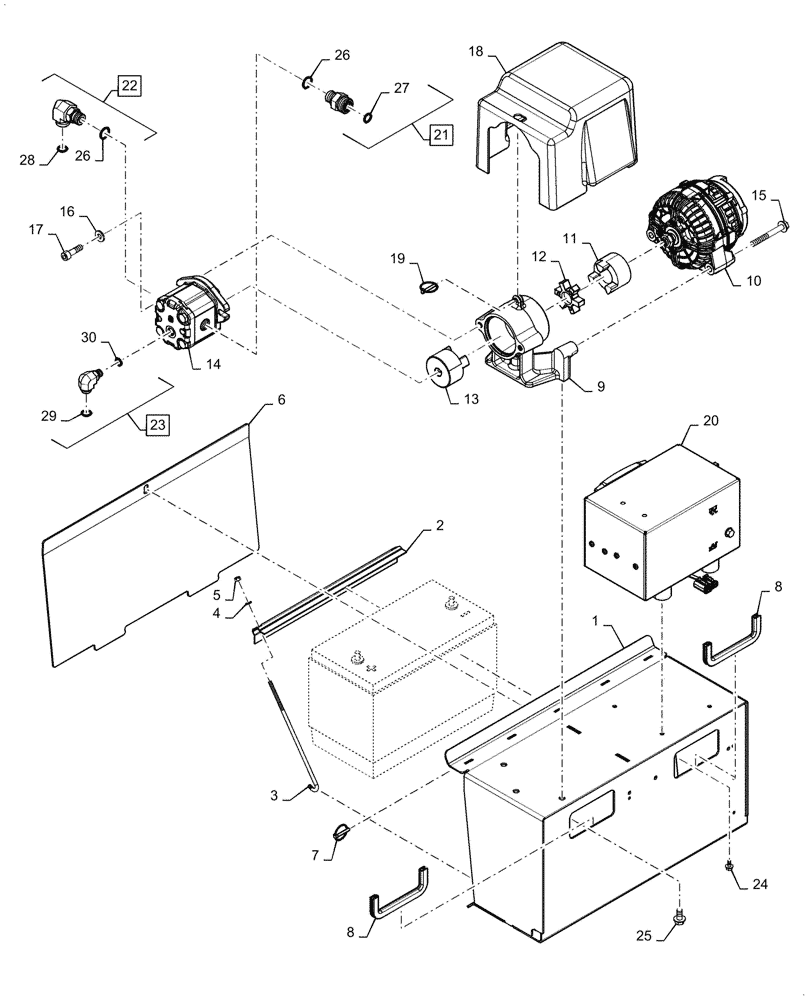

Запчасти Case IH 2160 (55.301.AA[08]) - ALTERNATOR AND BATTERY BOX, 2160 (55) - ELECTRICAL SYSTEMS

1

47762806

SUPPORT

Battery PDM & Alternator, Red

1шт.

2

47689749

SUPPORT

Battery Hold Down, Grey

1шт.

3

86524904

BOLT

2шт.

4

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

5

353308

NUT,M6 x 1.0, Cl 8

2шт.

6

47762809

COVER

Battery Access

1шт.

7

86508947

LINCH PIN,18.8mm OD

1шт.

8

135370A1

PROTECTION STRIP

2шт.

9

47805839

SUPPORT

Alternator / Hydraulic Motor

1шт.

10

84474354

ALTERNATOR,12V, 200A

1шт.

11

47687299

COUPLING

1шт.

12

47687305

HYD CONNECTOR

1шт.

13

47699703

COUPLING

1шт.

14

47779182

HYDRAULIC MOTOR

1шт.

15

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

2шт.

16

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

2шт.

17

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

2шт.

18

47805834

SHIELD

1шт.

19

86508947

LINCH PIN,18.8mm OD

1шт.

20

47714576

MODULE

Power Distribution

1шт.

21

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

Incl 26, 27

1шт.

22

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

Incl 26, 28

1шт.

23

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Incl 29, 30

1шт.

24

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

4шт.

25

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

3шт.

26

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

27

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

29

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
