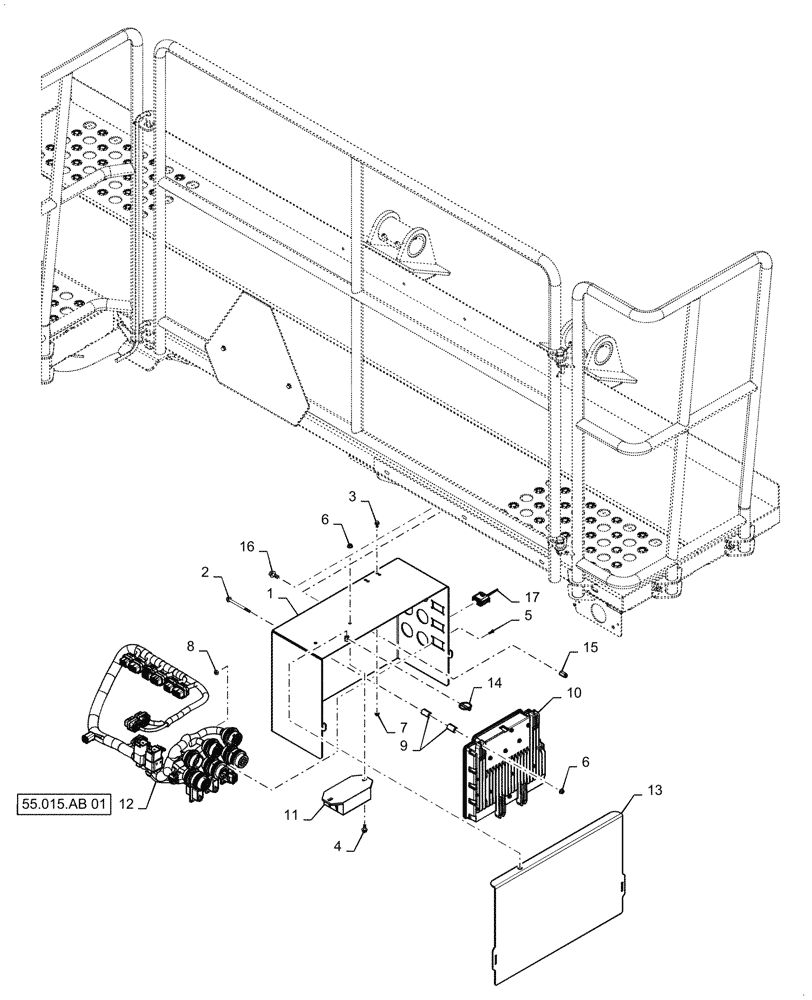

Запчасти Case IH 2160 (55.105.AA[01]) - UCM (55) - ELECTRICAL SYSTEMS

1

47922813

FRAME

Box

1шт.

2

84382751

FLANGE BOLT

4шт.

3

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

2шт.

4

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

5

10444721

BOLT,Hex, M4 x 14mm, Cl 8.8, Full Thd

12шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

7

86512495

FLANGE NUT,Hex, M5, Cl 8

2шт.

8

100012

NUT,M4 x 0.7, Cl 8

12шт.

9

13604411

SPACER,6.5mm ID x 15mm OD x 25mm L

8шт.

10

47632823

ECU

UCM

1шт.

11

86561136

MODULE

1шт.

12

48040350

WIRE HARNESS

UCM Interface

1шт.

13

47922815

COVER

Access

1шт.

14

86508947

LINCH PIN,18.8mm OD

1шт.

15

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

4шт.

16

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

17

47713663

WIRE HARNESS

UCM Cover

1шт.
