Запчасти Case IH 2160 (55.015.AB[20]) - WIRE HARNESS ROW UNIT, HIGH SPEED (55) - ELECTRICAL SYSTEMS

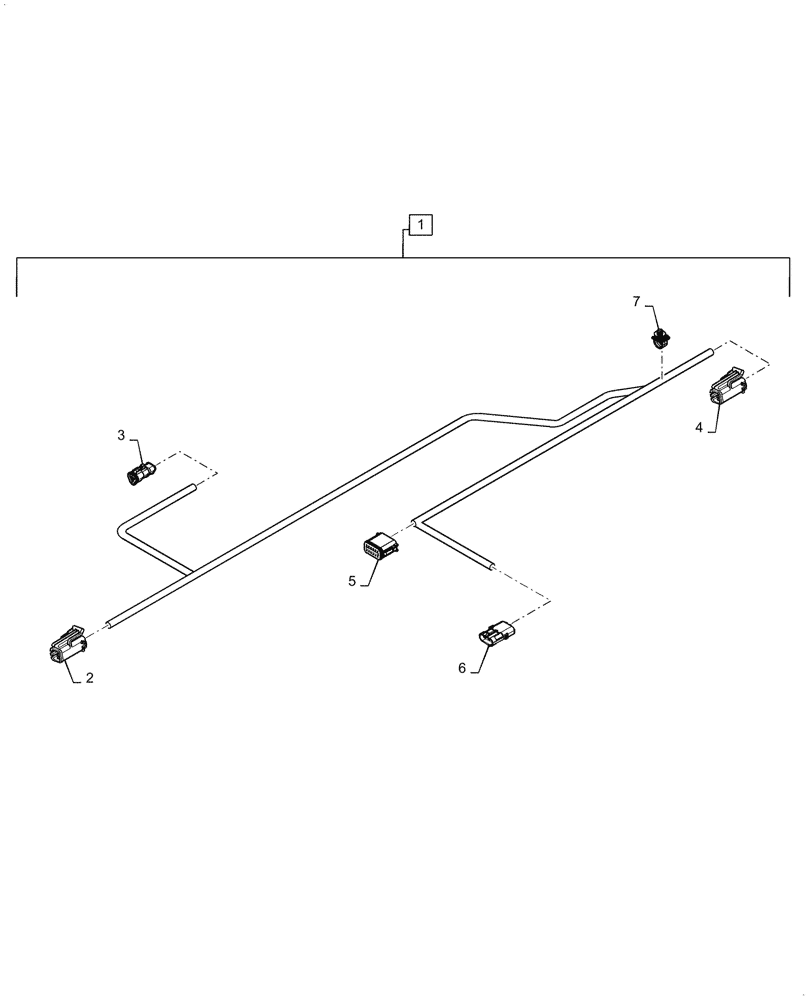

Схема запчастей Case IH 2160 - (55.015.AB[20]) - WIRE HARNESS ROW UNIT, HIGH SPEED (55) - ELECTRICAL SYSTEMS
4
1
2
3
6
7
5

Артикул

Название

Примечание

Количество

1

48065753

WIRE HARNESS

Row Unit, High Speed, Incl 2 - 7

1шт.

2

48065754

WIRE CONNECTOR

VDM

1шт.

2

87697944

TERMINAL

6шт.

2

84277229

1шт.

3

84058093

SOCKET

Row Can Terminator

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities A, B

2шт.

3

84068583

PLUG,12 - 16 Ga, White

Cavity C

1шт.

3

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

3

84058194

PLUG

Keyed Wedge Lock

1шт.

4

48065754

WIRE CONNECTOR

SBM

1шт.

4

87697944

Cavities 1 - 4, 6

TERMINAL

5шт.

4

84068583

PLUG,12 - 16 Ga, White

Cavity 5

1шт.

4

84277229

Wedge Lock

1шт.

5

87695592

CONTACT HOUSING,Female, 12 Pole

VDM & SBM

1шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1, 2

2шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities 3 - 5, 8, 10 - 12

7шт.

5

84068583

PLUG,12 - 16 Ga, White

Cavities 6, 7, 9

3шт.

5

87695651

LOCKING TAB,Wedge Lock

1шт.

6

87692858

ELEC CONNECTOR,Male

Seed Tube

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

3шт.

6

87644909

WIRE CONNECTOR,Female, 3 Pins

1шт.

6

87686742

PLUG

3шт.

7

84259663

CABLE TIE,228.6mm L, Nylon, Black

1шт.

Выбрано товаров: 23
