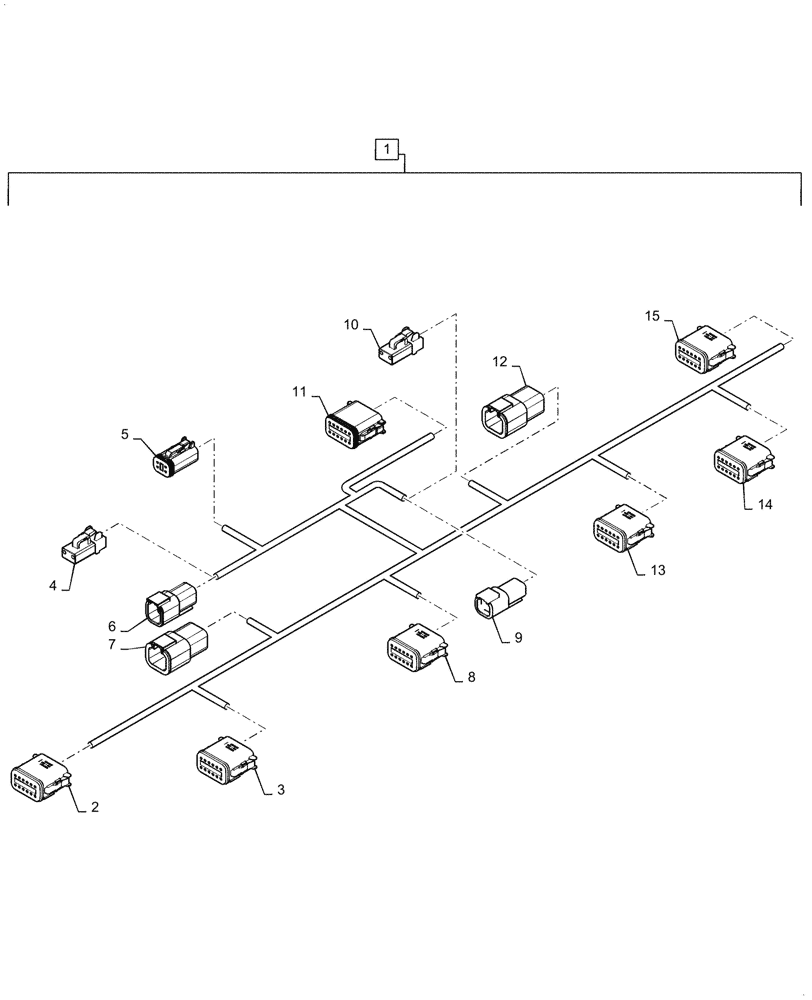

Запчасти Case IH 2160 (55.015.AB[03]) - WIRE HARNESS CENTER CONTROL BUS, 36 ROW (55) - ELECTRICAL SYSTEMS

1

47745720

WIRE HARNESS

Assembly, Incl 2 - 15, 36 Row 30"

1шт.

1

47745728

WIRE HARNESS

Assembly, Incl 2 - 15, 36 Row 22"

1шт.

2

87696075

ELEC CONNECTOR

Row 16

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

2

87695651

LOCKING TAB,Wedge Lock

1шт.

3

87696075

ELEC CONNECTOR

Row 17

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

3

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

3

87695651

LOCKING TAB,Wedge Lock

1шт.

4

87710849

SOCKET/RECEPTACLE

LH Bus

1шт.

4

87695923

TERMINAL

2шт.

4

84148916

LOCKING TAB

1шт.

5

87694101

ELEC CONNECTOR,Female, 4 Cavities

PDM

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

4шт.

5

87694148

ELEC CONNECTOR

1шт.

6

87700106

ELEC CONNECTOR

Left Bus

1шт.

6

87696141

TERMINAL

Cavities 1 - 4, 6

5шт.

6

84807680

PLUG

Cavity Plug, Caivty 5

1шт.

6

87705583

ELEC CONNECTOR

Wedge Lock

1шт.

7

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

Center Bus Power

1шт.

7

87695923

TERMINAL

4шт.

7

87707798

WEDGE

1шт.

8

87696075

ELEC CONNECTOR

Row 18

1шт.

9

87700105

ELEC CONNECTOR

Right Bus

1шт.

8

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

8

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

11

87710838

MULTIPOLE CONNECTOR

UCM CAN 1

1шт.

8

87695651

LOCKING TAB,Wedge Lock

1шт.

9

87696141

TERMINAL

4шт.

9

87705587

ELEC CONNECTOR

1шт.

10

87710849

SOCKET/RECEPTACLE

Right Bus Power

1шт.

10

87704524

ELEC CONNECTOR,Pin, Size 12

2шт.

10

84148916

LOCKING TAB

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

3шт.

11

84068583

PLUG,12 - 16 Ga, White

9шт.

11

87710914

STOP LOCK,12 Pin Plug

1шт.

12

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

Center Power 2

1шт.

12

87704524

ELEC CONNECTOR,Pin, Size 12

4шт.

12

87707798

WEDGE

1шт.

13

87696075

ELEC CONNECTOR

Row 19

1шт.

13

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

13

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

13

87695651

LOCKING TAB,Wedge Lock

1шт.

14

87696075

ELEC CONNECTOR

Row 20

1шт.

14

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

14

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

14

87695651

LOCKING TAB,Wedge Lock

1шт.

15

87696075

ELEC CONNECTOR

Row 21

1шт.

15

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

1шт.

15

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

7шт.

15

87695651

LOCKING TAB,Wedge Lock

5шт.
