Запчасти Case IH 2160 (55.015.AB[01]) - WIRE HARNESS 36 ROW HITCH (55) - ELECTRICAL SYSTEMS

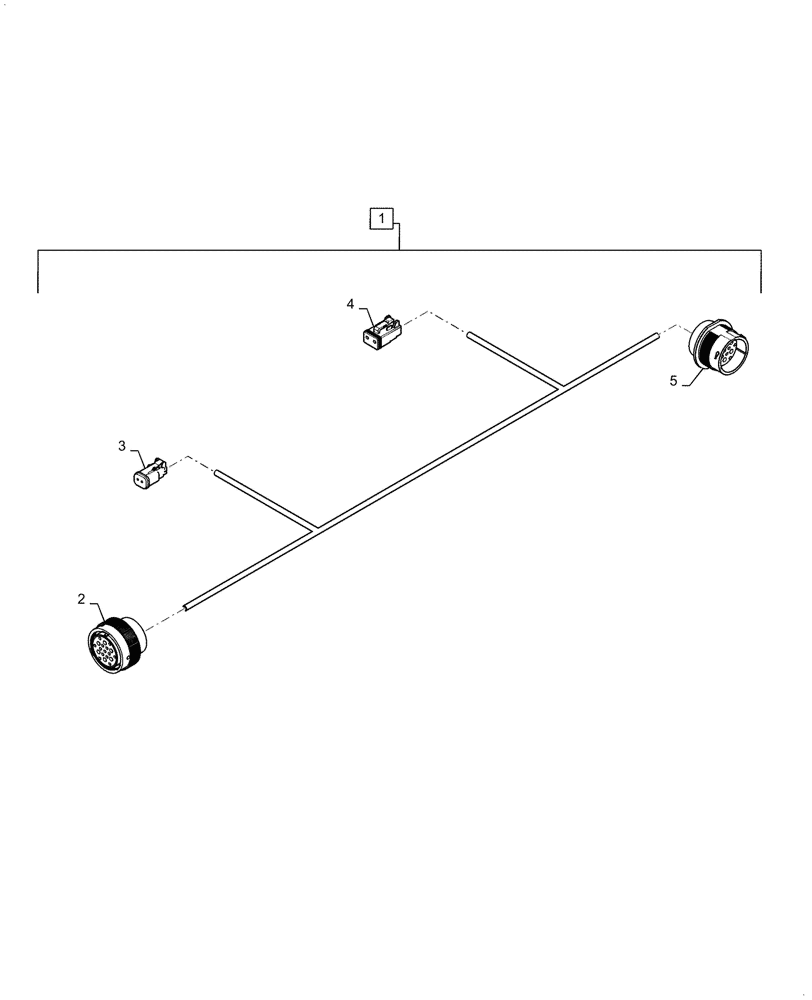

Схема запчастей Case IH 2160 - (55.015.AB[01]) - WIRE HARNESS 36 ROW HITCH (55) - ELECTRICAL SYSTEMS
4
2
5
3
1

Артикул

Название

Примечание

Количество

1

48007286

WIRE HARNESS

Assembly, Incl 2 - 5

1шт.

2

87703940

ELEC CONNECTOR

UCM - Hitch

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

19шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Cooler Power

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

2шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

3

84391159

WIRE CONNECTOR

1шт.

4

87711966

PLUG

Case Drain Switch

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

4

87712180

ELEC CONNECTOR

Wedge Lock

1шт.

5

87696098

ELEC CONNECTOR

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities 2 - 19

18шт.

5

84068583

PLUG,12 - 16 Ga, White

Cavity 1

1шт.

5

84420455

LOCK WASHER,48mm ID x 45.8mm OD

1шт.

5

87271930

NUT

1шт.

Выбрано товаров: 15
