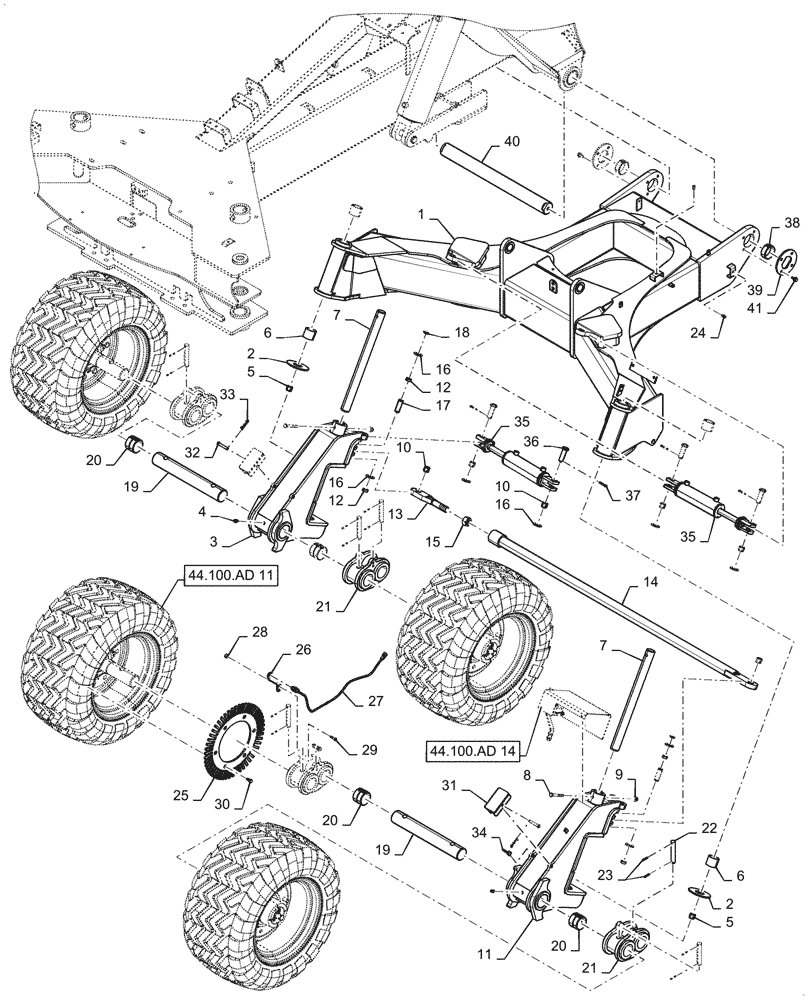

Запчасти Case IH 2160 (44.100.AD[13]) - TRACK CARRIER, STEERING (44) - WHEELS

1

47886800

FRAME

Steer Carrier

1шт.

2

84214987

WEAR PLATE

2шт.

3

84217794

STEERING KNUCKLE

30', LH

1шт.

4

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

5

84215008

GROOVED BUSHING

2шт.

6

87632788

BUSHING

2.0 ID x 2.5 OD

4шт.

7

84204654

PIN

Steerable Axle

2шт.

8

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

9

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

10

3523

BUSHING

1.25 x 1 x 1

6шт.

11

84209651

STEERING KNUCKLE

30', RH

1шт.

12

97772C1

BUSHING

Tension

4шт.

13

84212999

TIE-ROD

Adjustable

1шт.

14

84305894

TIE-ROD

30'

1шт.

15

280490

NUT,1 1/4"-12, G5

1шт.

16

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

8шт.

17

84219275

PIN

25.4 x 62

2шт.

18

87019495

SNAP RING,#98, Ext

4шт.

19

87740596

SHAFT

76.4mm x 544.8mm

2шт.

20

87419947

GROOVED BUSHING,76.45mm ID x 82.55mm OD x 63.5mm L

4шт.

21

87753670

SUPPORT

Walk Beam Assembly

4шт.

22

87693681

LOCK PIN

Axle Shaft, 1'

8шт.

23

47390041

COILED PIN

16шт.

24

47643870

NUT

2шт.

25

84199319

SPROCKET

1шт.

26

87494821

BRACKET

Sensor Mount

1шт.

27

324049A1

SENSOR

Hall Effect, Zero Speed

1шт.

28

87039402

NUT,3/8"-16, GB

2шт.

29

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

30

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

6шт.

31

84230339

SUPPORT

Cylinder Top

2шт.

32

86979987

HEADED PIN,1/2" x 3", G5

2шт.

33

86629239

COTTER PIN,Int, 5/16" x .177

2шт.

34

87502038

CABLE TIE

Small

3шт.

35

47525652

HYDRAULIC CYLINDER

Steering

2шт.

36

87023161

HEADED PIN,1" x 3"

4шт.

37

87041

COTTER PIN,1/4" x 1 3/4"

4шт.

38

87419948

BUSHING,76.2mm ID x 82.55mm OD x 31.75mm L

2шт.

39

84229920

SUPPORT

Carrier Pin

2шт.

40

47869563

PIN

1шт.

41

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

8шт.
