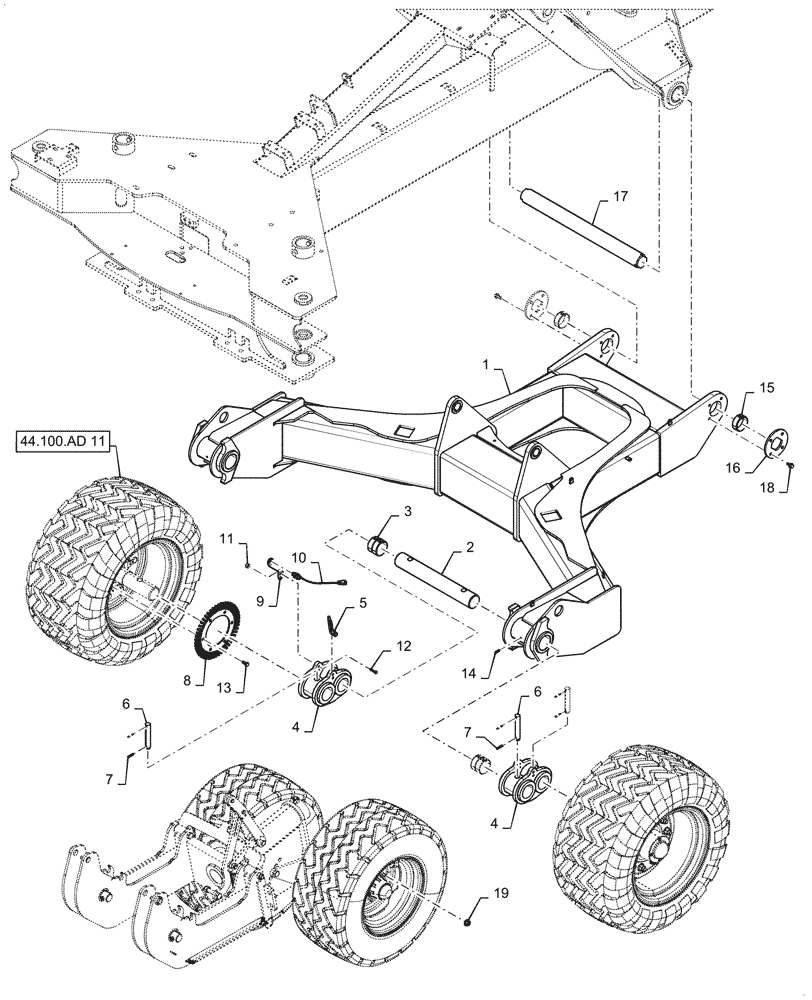

Запчасти Case IH 2160 (44.100.AD[10]) - TRACK CARRIER, HIGH FLOAT (44) - WHEELS

1

47963400

FRAME

Carrier, 30'

1шт.

2

87740596

SHAFT

Axle

2шт.

3

87419947

GROOVED BUSHING,76.45mm ID x 82.55mm OD x 63.5mm L

4шт.

4

87753670

SUPPORT

Walk Beam

4шт.

5

87502038

CABLE TIE

Small

1шт.

6

87693681

LOCK PIN

Axle Shaft, 1'

8шт.

7

47390041

COILED PIN

16шт.

8

84199319

SPROCKET

1шт.

9

87494821

BRACKET

Sensor Mounting

1шт.

10

324049A1

SENSOR

Hall Effect, Zero Speed

1шт.

11

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

2шт.

12

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

6шт.

14

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

15

87419948

BUSHING,76.2mm ID x 82.55mm OD x 31.75mm L

2шт.

16

84229920

SUPPORT

2шт.

17

47869563

PIN

1шт.

18

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

8шт.

19

47741884

NUT

64шт.
