(44.100.AD[05]) - STEERING TRACK 120 INCH

Запчасти Case IH 2160 (44.100.AD[05]) - STEERING TRACK 120 INCH (44) - WHEELS

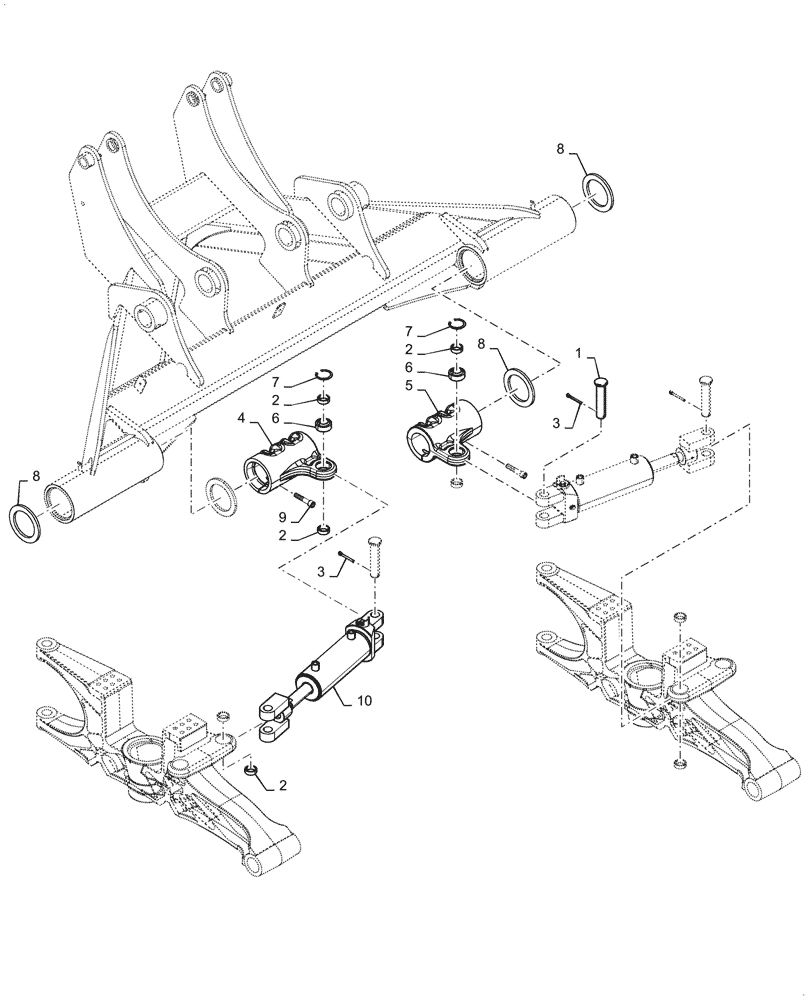

Схема запчастей Case IH 2160 - (44.100.AD[05]) - STEERING TRACK 120 INCH (44) - WHEELS
8
5
2
6
8
1
2
3
2
3
6
2
10
4
9
7
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48044338

PIN

Cylinder Pin, Steering

4шт.

2

47840541

SPACER

Cylinder Pin, Steering

8шт.

3

130017

COTTER PIN,M8 x 63

4шт.

4

47840489

HYDRAULIC CYLINDER

Steering Base, RH

1шт.

5

47840488

HYDRAULIC CYLINDER

Steering Base, LH

1шт.

6

87443834

SPHERICAL BEARING,35mm ID x 62mm OD x 35mm W

2шт.

7

370012

RING,M62, Internal

2шт.

8

47838392

WASHER

Axle Shaft, Track

4шт.

9

47840536

M16 x 80

8шт.

10

47877430

HYDRAULIC CYLINDER

Track Steering

2шт.
