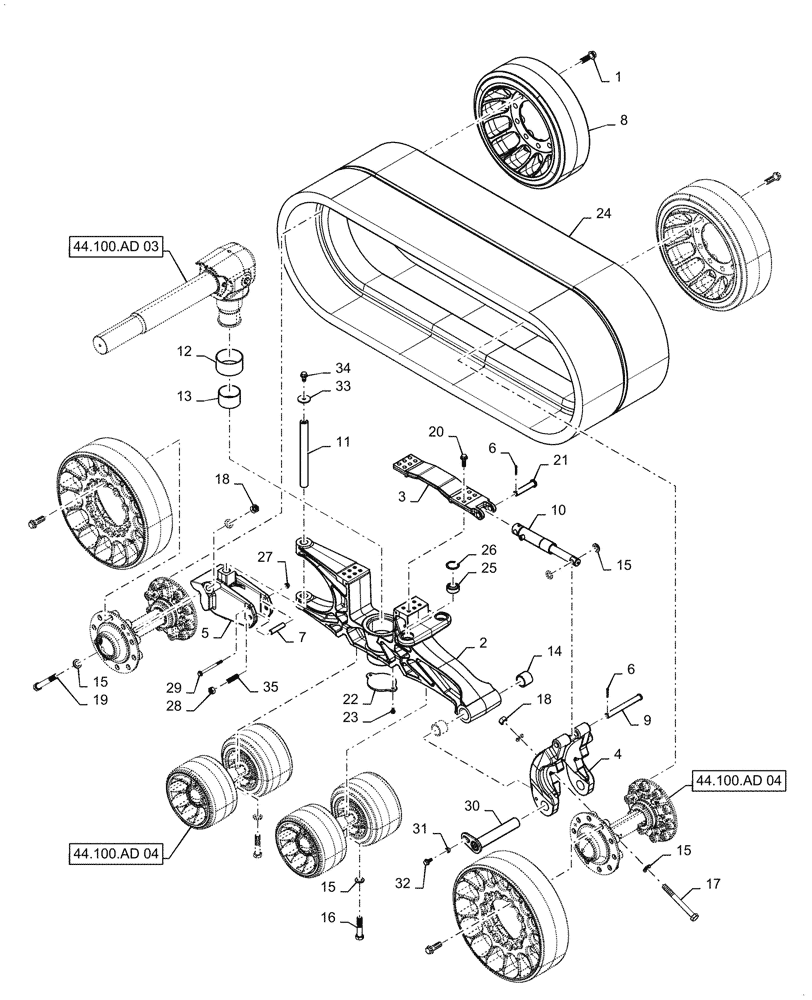

Запчасти Case IH 2160 (44.100.AD[02]) - TRACK ASSEMBLY, 2160 (44) - WHEELS

1

47435326

BOLT

M24 x 70

40шт.

2

47821043

UNDERCARRIAGE

Support

1шт.

3

47821038

PLATE

Top Support

1шт.

4

47840532

IDLER

Idler Wheel

1шт.

5

47821033

SUPPORT

Rear Belt

1шт.

6

10797401

COTTER PIN,M5 x 36

2шт.

7

47908968

2шт.

8

84585561

IDLER WHEEL

24'

4шт.

9

47838396

PIN

1' x 8.86'

1шт.

10

47800575

HYDRAULIC CYLINDER

Track Tension

1шт.

11

47838400

PIN

1.5' x 15.5'

1шт.

12

47838403

BUSHING

5' ID x 5.25' OD x 2.75' L

1шт.

13

47838404

BUSHING

4' ID x 4.25' OD x 2.5' L

1шт.

14

47840539

BUSHING

2' ID x 2.5' OD x 2' L

2шт.

15

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

14шт.

16

48014362

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

4шт.

17

16055337

BOLT,Hex, M24 x 230mm, Cl 10.9

2шт.

18

9848973

NUT,M24 x 3.0, Cl 10

4шт.

19

16047131

SCREW,M24 x 180mm, Cl 10.9

2шт.

20

87698849

BOLT,M16 x 50mm, Cl 10.9

12шт.

21

84569158

PIN

1шт.

22

47840511

PLATE

Under Carriage

1шт.

23

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

24

47840537

TRACK ASSY

24' Wide, Rubber

1шт.

25

87443834

SPHERICAL BEARING,35mm ID x 62mm OD x 35mm W

1шт.

26

370012

RING,M62, Internal

1шт.

27

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

28

9847024

NUT,M20, Cl 10

2шт.

29

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

2шт.

30

47840505

PIN

1шт.

31

87305411

SPACER,16.69mm ID x 22.23mm OD x 10.31mm Thk

1шт.

32

84188437

BOLT,Hex, M14 x 30mm, Cl 10.9

1шт.

33

84017220

WASHER,16.5mm ID x 62.5mm OD x 5mm Thk

2шт.

34

47715974

BOLT

M16 x 30

2шт.

35

47908966

2шт.
