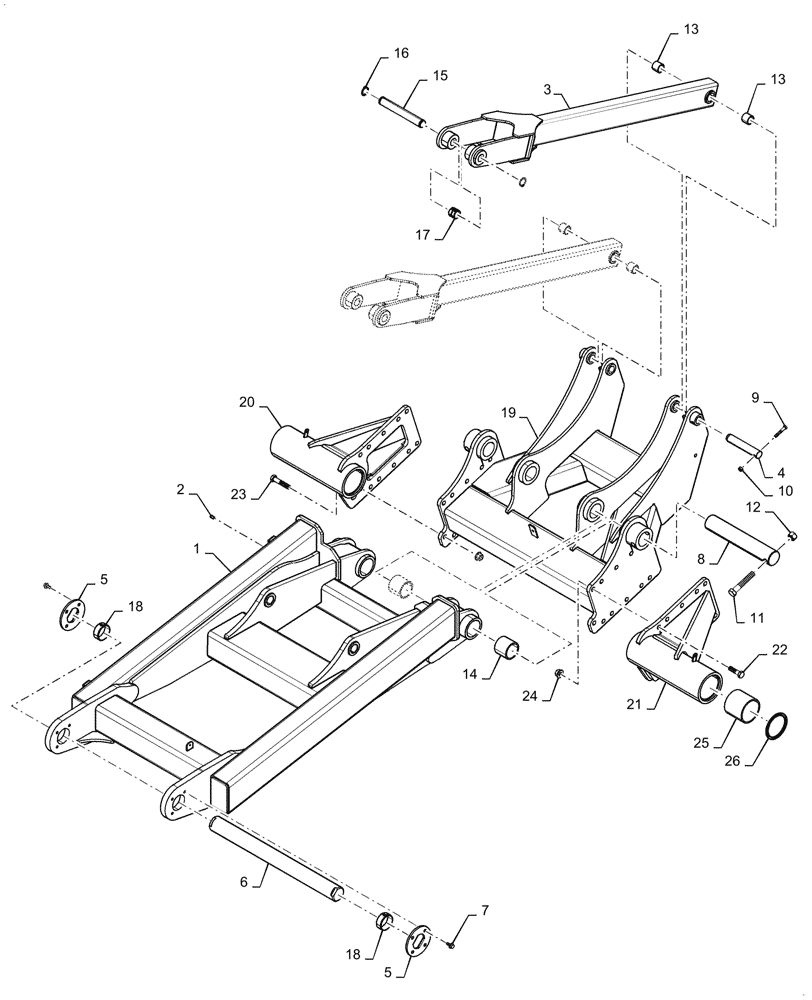

Запчасти Case IH 2160 (44.100.AD[01]) - TRACK CARRIER, 2160 (44) - WHEELS

1

47840513

FRAME

Upper

1шт.

2

47643870

NUT

4шт.

3

47840517

LINKAGE

Lift, Short

2шт.

4

47837553

PIN

Link, Lower, 38.1mm x 210mm

2шт.

5

84229920

SUPPORT

Carrier Pin

2шт.

6

84174254

PIVOT PIN

76.2mm x 852mm

1шт.

7

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

8шт.

8

47804924

PIN

76.2mm x 416mm

2шт.

9

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

10

412672

NUT,Hex, M12 x 1.75, Cl 10

2шт.

11

86639186

SCREW,Hex, M24 x 140mm, Cl 10.9

2шт.

12

8401651

NUT,M24 x 3, Cl 10

2шт.

13

47840493

BUSHING

1.5mm OD

4шт.

14

47840492

BUSHING

3.0mm OD

4шт.

15

47838385

PIN

38.1mm x 266.7mm

2шт.

16

86632531

SNAP RING,#150, Ext

4шт.

17

7825

GROOVED BUSHING

1.75mm x 1.5mm x 1.5mm

2шт.

18

87419948

BUSHING,76.2mm ID x 82.55mm OD x 31.75mm L

3.25mm x 3mm x 1.25mm

2шт.

19

48067010

FRAME

Lower

1шт.

20

48067056

AXLE

Right

1шт.

21

48067057

AXLE

Left

1шт.

22

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

20шт.

23

9843612

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

24

84144652

FLANGE NUT

M20 x 1.5

22шт.

25

47837536

BUSHING

4.516mm x 5.0mm x 4.5mm

4шт.

26

47837650

SEAL

Axle Shaft, 4.5mm ID x 5.5mm OD

4шт.
