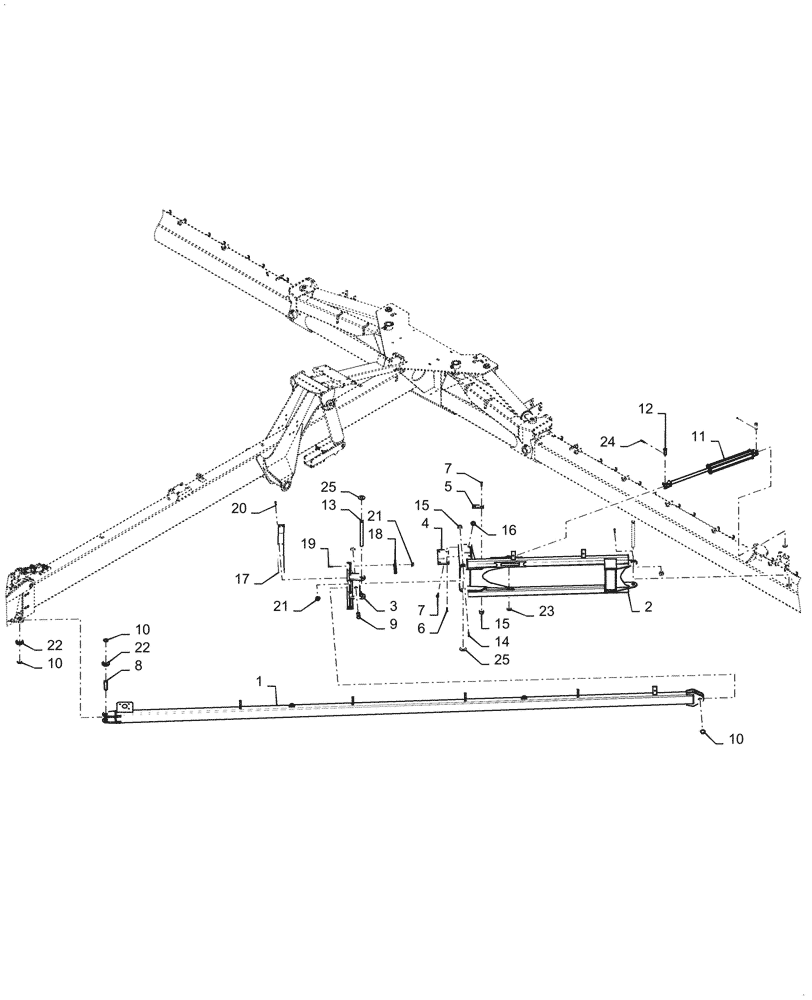

Запчасти Case IH 2160 (37.120.AO[05]) - DRAFT TUBES RIGHT, 36 ROW (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84388647

FRAME

Draft Tube, 90 Ft, Red

1шт.

2

47675768

FRAME

Rear, RH, 90 Ft

1шт.

3

84131988

FRAME

Center

1шт.

4

87671069

PAD

147.6mm x 240mm x19.1mm

1шт.

5

87757690

PAD

46mm x 147.6mm x 19.1mm

1шт.

6

300502

HEX SOC SCREW,FLAT, M12 x 1.75 x 40mm, Cl 8.8

2шт.

7

381527

4шт.

8

48030343

PIN

1шт.

9

87708895

PIN

1шт.

10

86632531

SNAP RING,#150, Ext

4шт.

11

87671040

HYDRAULIC CYLINDER,38.1mm Rod, 609.6mm Stroke

1шт.

12

86632568

HEADED PIN,1" x 3 1/2", G5

2шт.

13

87757677

PIN

2шт.

14

86624981

BOLT,Hex, M12 x 85mm, Cl 8.8

2шт.

15

100038

NUT,M12 x 1.75, Cl 8

4шт.

16

86619803

FLANGE NUT

2шт.

17

87671065

PAD

1шт.

18

87671075

SUPPORT

1шт.

19

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

20

72181588

HEX SOC SCREW,Flat Hd, M10 x 35mm, Cl 8.8

6шт.

21

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

8шт.

22

87671027

BUSHING

2шт.

23

87036175

WASHER,1.06" ID x 2" OD x 0.22" Thk

2шт.

24

87041

COTTER PIN,1/4" x 1 3/4"

2шт.

25

432584A1

WASHER

2шт.
