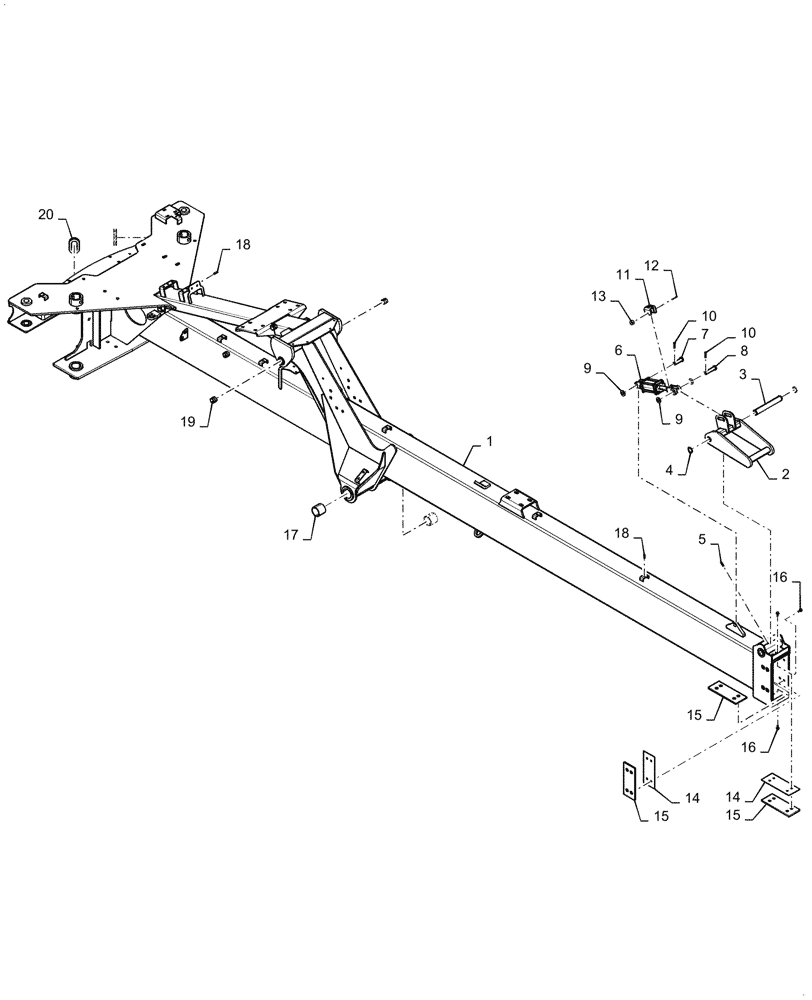

Запчасти Case IH 2160 (37.100.AF[13]) - OUTER HITCH, 36 ROW (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47648116

1шт.

2

87485054

LATCH

Outer Hitch

1шт.

3

87477223

HITCH PIN

1шт.

4

86625149

SNAP RING,#175, Ext

2шт.

5

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

6

87671044

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 76.2mm Stroke

1шт.

7

86632568

HEADED PIN,1" x 3 1/2", G5

1шт.

8

86632569

HEADED PIN,1" x 4 1/2", G5

1шт.

9

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

3шт.

10

8701

MEASURING CAN

2шт.

11

84216996

STOP LOCK

1шт.

12

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

1шт.

13

353308

NUT,M6 x 1.0, Cl 8

1шт.

14

87757688

WEAR PAD

Hitch

3шт.

15

47646644

PAD

Skid

4шт.

16

86977727

FLANGE BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

16шт.

17

87503180

BUSHING

2шт.

18

47643870

NUT

12шт.

19

7825

GROOVED BUSHING

2шт.

20

48033967

GROMMET

2шт.
