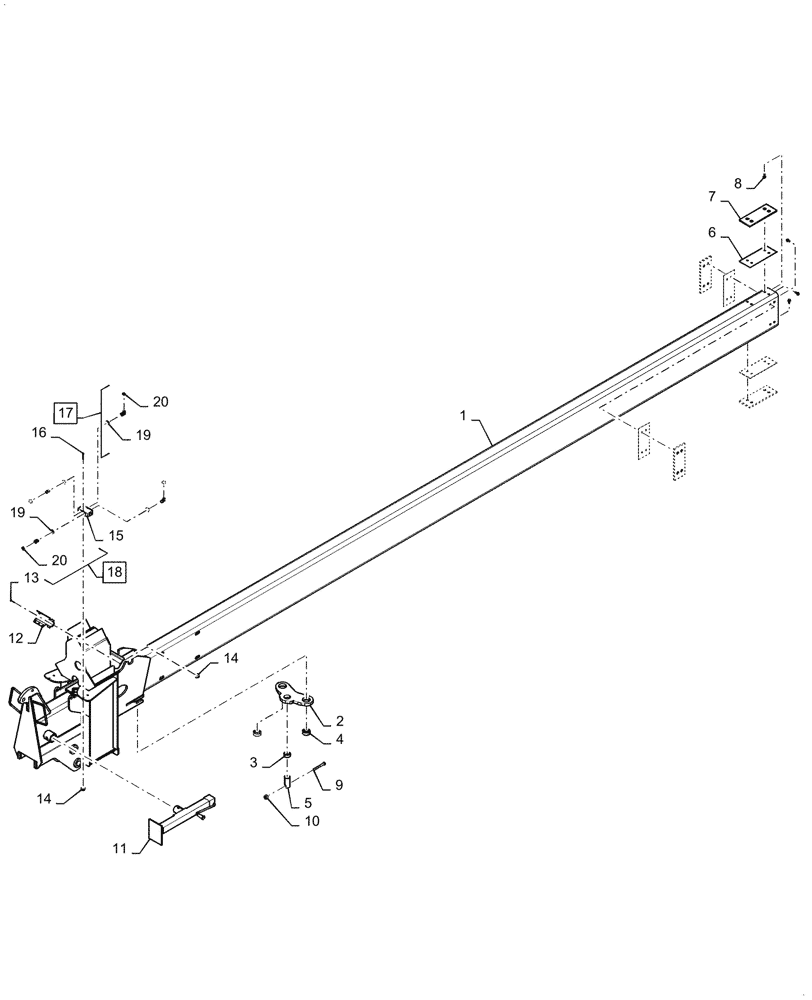

Запчасти Case IH 2160 (37.100.AF[12]) - INNER HITCH, 36 ROW (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84125515

FRAME

Inner Hitch

1шт.

2

47959331

PLATE

Draft Tube Rocker, Red

1шт.

3

87686078

BUSHING

1шт.

4

47794686

BEARING ASSY

2шт.

5

87486152

PIN

Rocker Draft Tube

1шт.

6

87757688

WEAR PAD

Hitch Pad

4шт.

7

47646644

PAD

Sliding Skid

4шт.

8

86977727

FLANGE BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

16шт.

9

354360

BOLT,Hex, M16 x 2 x 130mm, Cl 8.8

1шт.

10

251843

LOCK NUT,M16 x 2, Cl 10

1шт.

11

385338A1

JACK

Sidewind

1шт.

12

48004519

BRACKET

Hose Clamp, Red

1шт.

13

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

15

298624A1

VALVE

Check

1шт.

16

84188432

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

17

84390792

90 ELBOW

Incl 19, 20

2шт.

18

87672176

HYD CONNECTOR

Incl 19, 20

2шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

20

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.
