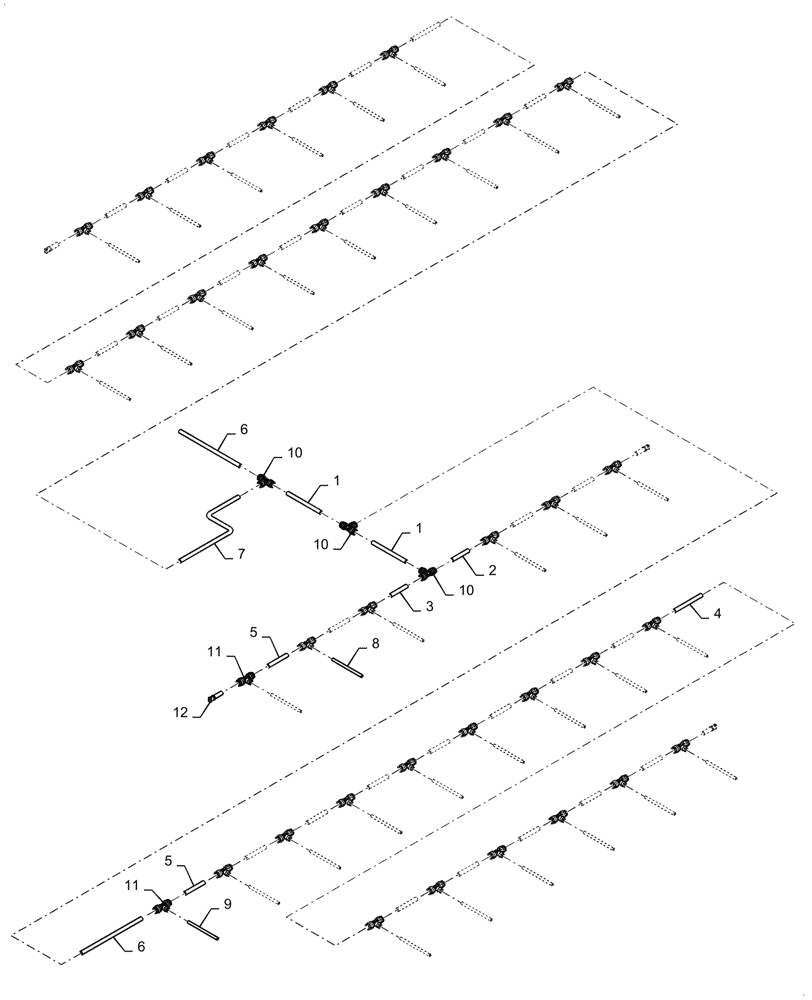

Запчасти Case IH 2160 (36.100.AB[14]) - PNEUMATIC LINES AIR CLOSING RETURN, 36 ROW (36) - PNEUMATIC SYSTEM
![Схема запчастей Case IH 2160 - (36.100.AB[14]) - PNEUMATIC LINES AIR CLOSING RETURN, 36 ROW (36) - PNEUMATIC SYSTEM](https://partsell.ru/storage/images/caseih/5516480.png)
5
2
9
6
6
1
10
8
4
1
11
7
3
10
12
5
10
11
№
Артикул
Название
Примечание
Количество
1
47943437
PLASTIC-RUBBER TUBE
Bulk, 3/8', Cut to Length 50mm
2шт.
2
47943437
PLASTIC-RUBBER TUBE
Bulk, 3/8', Cut to Length 250mm
1шт.
3
47943437
PLASTIC-RUBBER TUBE
Bulk, 3/8', Cut to Length 500mm
1шт.
4
47943437
PLASTIC-RUBBER TUBE
Bulk, 3/8', Cut to Length 875mm
2шт.
5
47943437
PLASTIC-RUBBER TUBE
Bulk, 3/8', Cut to Length 740mm
30шт.
6
47943437
PLASTIC-RUBBER TUBE
Bulk, 3/8', Cut to Length 2950mm
2шт.
7
47943437
PLASTIC-RUBBER TUBE
Bulk, 3/8', Cut to Length 3050mm
1шт.
8
47943430
PLASTIC-RUBBER TUBE
Bulk, 1/4', Cut to Length 1710mm
6шт.
9
47943430
PLASTIC-RUBBER TUBE
Bulk, 1/4', Cut to Length 1780mm
30шт.
10
47633932
HYD CONNECTOR
3шт.
11
47633933
HYD CONNECTOR
36шт.
12
47705231
PLUG
4шт.
Выбрано товаров: 12
