(36.100.AB[13]) - PNEUMATIC LINES AIR CLOSING SUPPLY, 36 ROW

Запчасти Case IH 2160 (36.100.AB[13]) - PNEUMATIC LINES AIR CLOSING SUPPLY, 36 ROW (36) - PNEUMATIC SYSTEM

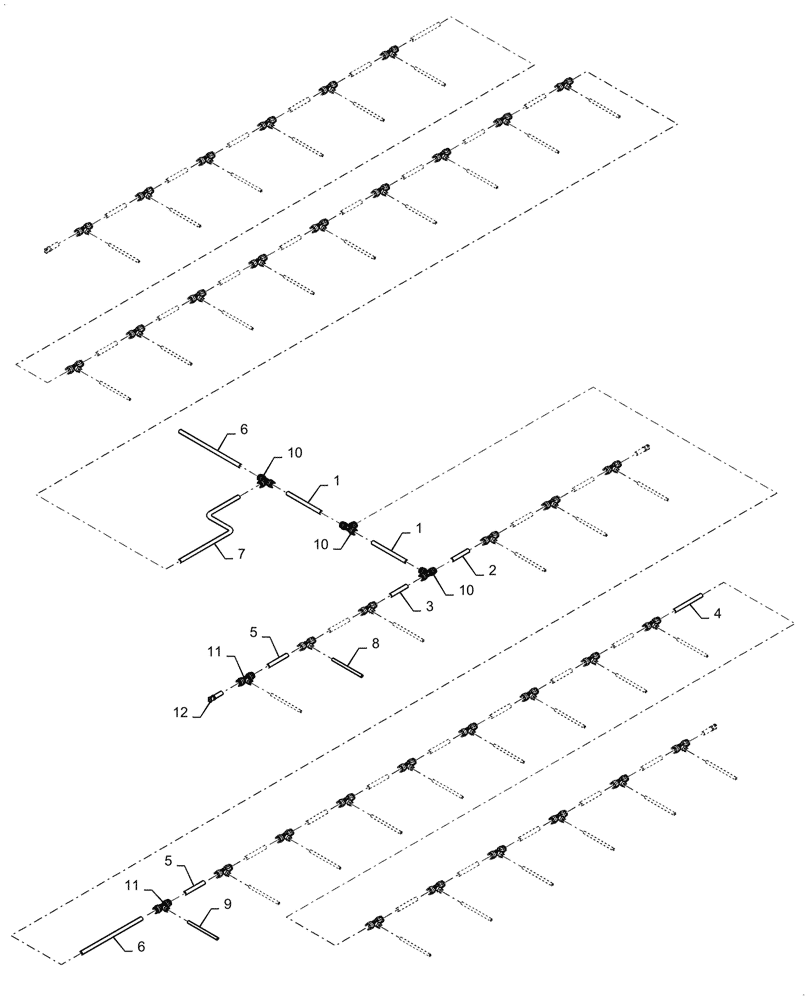

Схема запчастей Case IH 2160 - (36.100.AB[13]) - PNEUMATIC LINES AIR CLOSING SUPPLY, 36 ROW (36) - PNEUMATIC SYSTEM
1
6
10
11
10
3
11
1
4
8
10
7
6
2
5
5
9
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47619238

PLASTIC-RUBBER TUBE

Bulk, Cut to Length, 3/8' 50mmL

2шт.

2

47619238

PLASTIC-RUBBER TUBE

Bulk, Cut to Length, 3/8' 250mmL

1шт.

3

47619238

PLASTIC-RUBBER TUBE

Bulk, Cut to Length, 3/8' 500mmL

1шт.

4

47619238

PLASTIC-RUBBER TUBE

Bulk, Cut to Length, 3/8' 875mmL

2шт.

5

47619238

PLASTIC-RUBBER TUBE

Bulk, Cut to Length, 3/8' 740mmL

30шт.

6

47619238

PLASTIC-RUBBER TUBE

Bulk, Cut to Length, 3/8' 2950mmL

2шт.

7

47619238

PLASTIC-RUBBER TUBE

Bulk, Cut to Length, 3/8' 3050mm L

1шт.

8

47619234

PLASTIC-RUBBER TUBE

Bulk, Cut to Length, 1/4' 1650mm L

6шт.

9

47619234

PLASTIC-RUBBER TUBE

Bulk, Cut to Length,1/4' 1820mm L

30шт.

10

47633932

HYD CONNECTOR

3шт.

11

47633933

HYD CONNECTOR

36шт.

12

47705231

PLUG

4шт.

Выбрано товаров: 12
