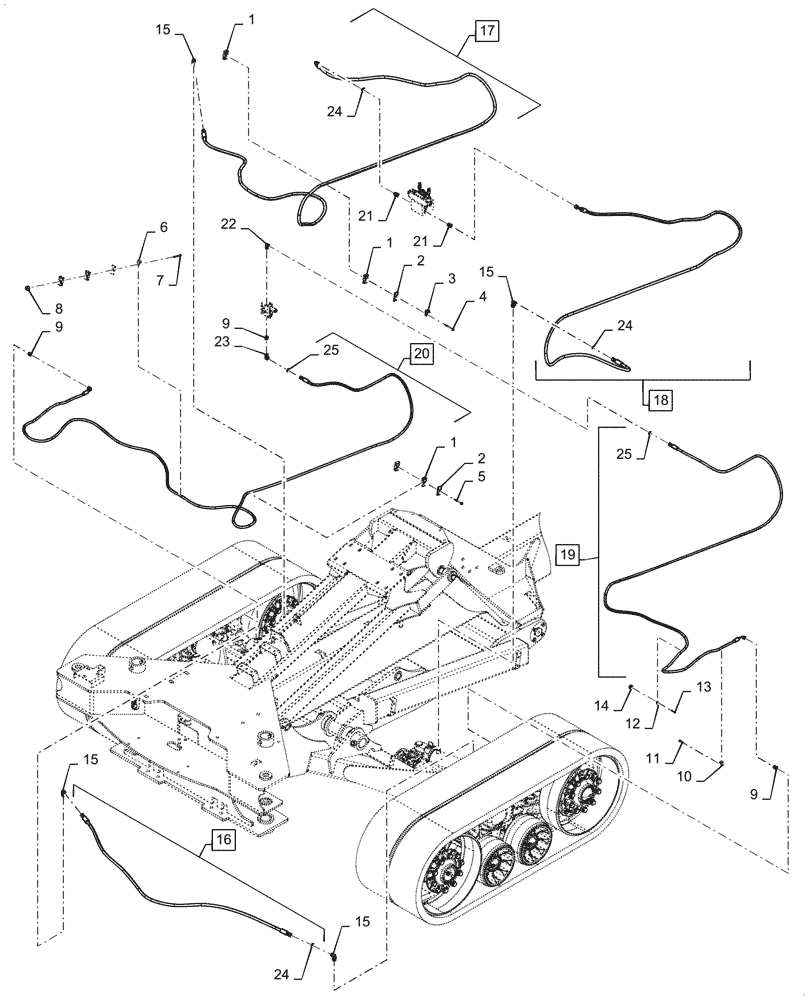

Запчасти Case IH 2160 (35.748.AG[06]) - HYDRAULIC TRACK STEERING HOSES (35) - HYDRAULIC SYSTEMS

1

87482623

CLAMP

14шт.

2

84566329

PROTECTION PLATE

7шт.

3

84474186

BASE

3шт.

4

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

3шт.

5

87015860

FLANGE BOLT

3шт.

6

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

7

412108

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8, Full Thd

1шт.

8

68841

NUT,M8 x 1.25, Cl 8

3шт.

9

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

3шт.

10

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

11

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

12

87564736

CLAMP,14.3mm, Insul, M6 Bolt

2шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

14

353308

NUT,M6 x 1.0, Cl 8

2шт.

15

84390792

90 ELBOW

4шт.

16

48057563

HYDRAULIC HOSE

2315mm L, Incl 24

1шт.

17

48057564

HYDRAULIC HOSE

6295mm L, Incl 24

1шт.

18

48073188

HYDRAULIC HOSE

5080mm L, Incl 24

1шт.

19

48073189

HYDRAULIC HOSE

5675mm L, Incl 25

1шт.

20

48073190

HYDRAULIC HOSE

7075mm L, Incl 25

1шт.

21

87672176

HYD CONNECTOR

2шт.

22

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

1шт.

23

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

1шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

25

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.
