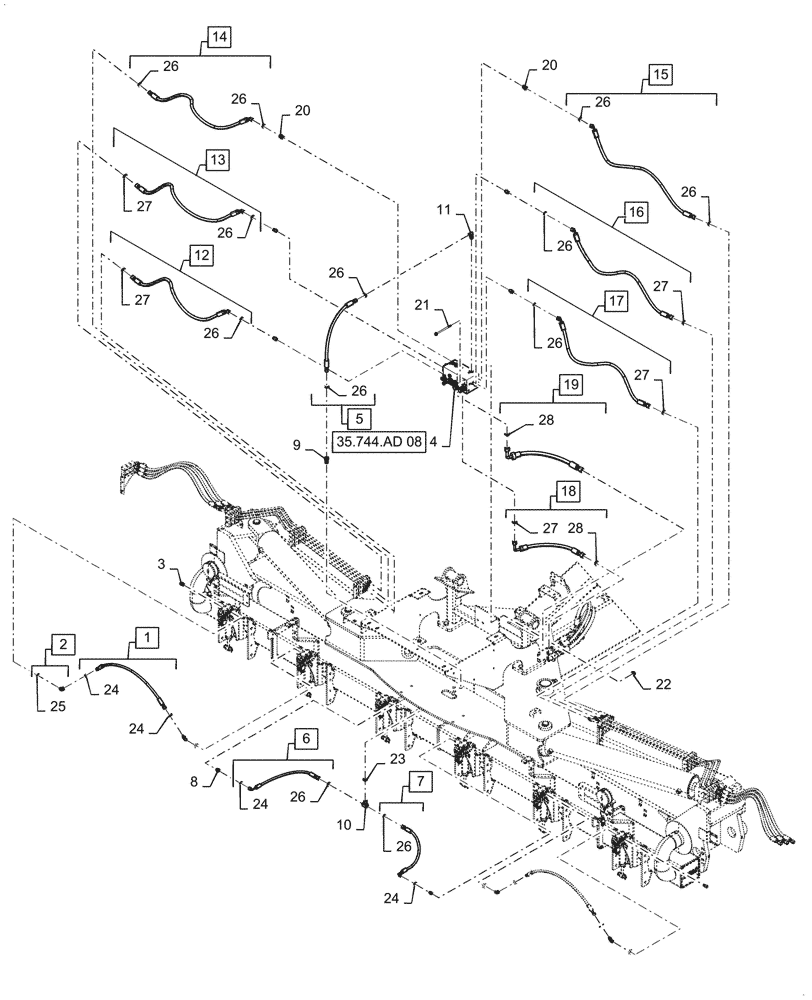

Запчасти Case IH 2160 (35.100.BI[29]) - CENTER HYDRAULIC HOSES, DOWN PRESSURE, 36 ROW (35) - HYDRAULIC SYSTEMS

1

47999950

HYDRAULIC HOSE

810mm L, Incl 24

12шт.

2

83961740

ELBOW

Incl 25

24шт.

3

76349

PLUG,9/16" - 18 ORB

6шт.

4

47794274

VALVE PRESSURE RELIE

1шт.

5

48013117

HYDRAULIC HOSE

690mm L, Incl 26

3шт.

6

48067522

HYDRAULIC HOSE

560mm L, Incl 24, 26

3шт.

7

48067523

HYDRAULIC HOSE

600mm L, Incl 24, 26

3шт.

8

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

6шт.

9

87317454

UNION

3шт.

10

84561113

BRANCH TEE

3шт.

11

84390792

90 ELBOW

3шт.

12

48016576

HYDRAULIC HOSE

1150mm L, Incl 26, 27

1шт.

13

48016577

HYDRAULIC HOSE

1140mm L, Incl 26, 27

1шт.

14

48016575

HYDRAULIC HOSE

1160mm L, Incl 26

1шт.

15

48016578

HYDRAULIC HOSE

1200mm L, Incl 26

1шт.

16

48016579

HYDRAULIC HOSE

1190mm L, Incl 26, 27

1шт.

17

48016580

HYDRAULIC HOSE

1180mm L, Incl 26, 27

1шт.

18

48021857

HYDRAULIC HOSE

540mm L, Incl 27, 28

1шт.

19

48021873

HYDRAULIC HOSE

580mm L, Incl 28

1шт.

20

87672176

HYD CONNECTOR

6шт.

21

87681213

BOLT,Hex, M10 x 140mm, Cl 10.9

3шт.

22

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

23

87381287

LOCK NUT

3шт.

24

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
