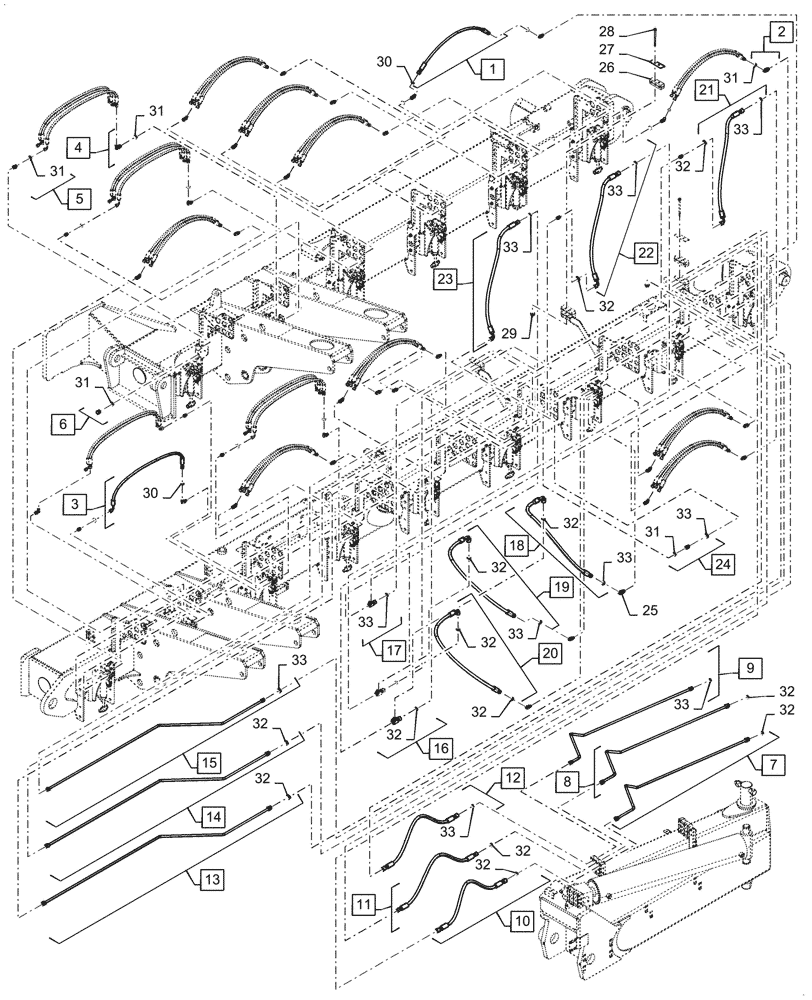

Запчасти Case IH 2160 (35.100.BI[27]) - LH HYDRAULIC HOSES, DOWN PRESSURE, 36 ROW (35) - HYDRAULIC SYSTEMS

1

47999950

HYDRAULIC HOSE

810mm L, Incl 30

27шт.

2

83961740

ELBOW

Incl 31

54шт.

3

48067289

HYDRAULIC HOSE

990mm L, Incl 30

12шт.

4

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 31

12шт.

5

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

Incl 31

12шт.

6

76349

PLUG,9/16" - 18 ORB

Incl 31

6шт.

7

47947252

TUBE

1489mm L, Incl 32, Inner Wing, Fold

1шт.

8

48069327

HYD TUBE

1440mm L, Incl 32, Downforce LH

1шт.

9

47948610

HYD TUBE

1400mm L, Incl 33

1шт.

10

48008799

HYDRAULIC HOSE

880mmL, Incl 32

1шт.

11

48006860

HYDRAULIC HOSE

900mm L, Incl 32

1шт.

12

48006861

HYDRAULIC HOSE

940mm L, Incl 33

1шт.

13

47947265

TUBE

1974mm L, Incl 32

1шт.

14

47947263

TUBE

1925mm L, Incl 32

1шт.

15

47947262

HYD TUBE

1871mm L, Incl 33

1шт.

16

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Incl 32

2шт.

17

47726686

UNION TEE

Incl 33

1шт.

18

48067301

HYDRAULIC HOSE

1020mm L, Incl 32, 33

1шт.

19

48067300

HYDRAULIC HOSE

1050mm L, Incl 32, 33

1шт.

20

48067299

HYDRAULIC HOSE

1150mm L, Incl 33

1шт.

21

48067297

HYDRAULIC HOSE

1020mm L, Incl 32, 33

1шт.

22

48067295

HYDRAULIC HOSE

1050mm L, Incl 32, 33

1шт.

23

48067294

HYDRAULIC HOSE

1150mm L, Incl 33

1шт.

24

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 31, 33

3шт.

25

47809446

ELBOW

3шт.

26

84176018

CLAMP

3шт.

27

47582385

BRACKET

3шт.

28

87681208

BOLT,Hex, M8 X 130, Class 10.9

6шт.

29

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

30

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

32

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

33

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
