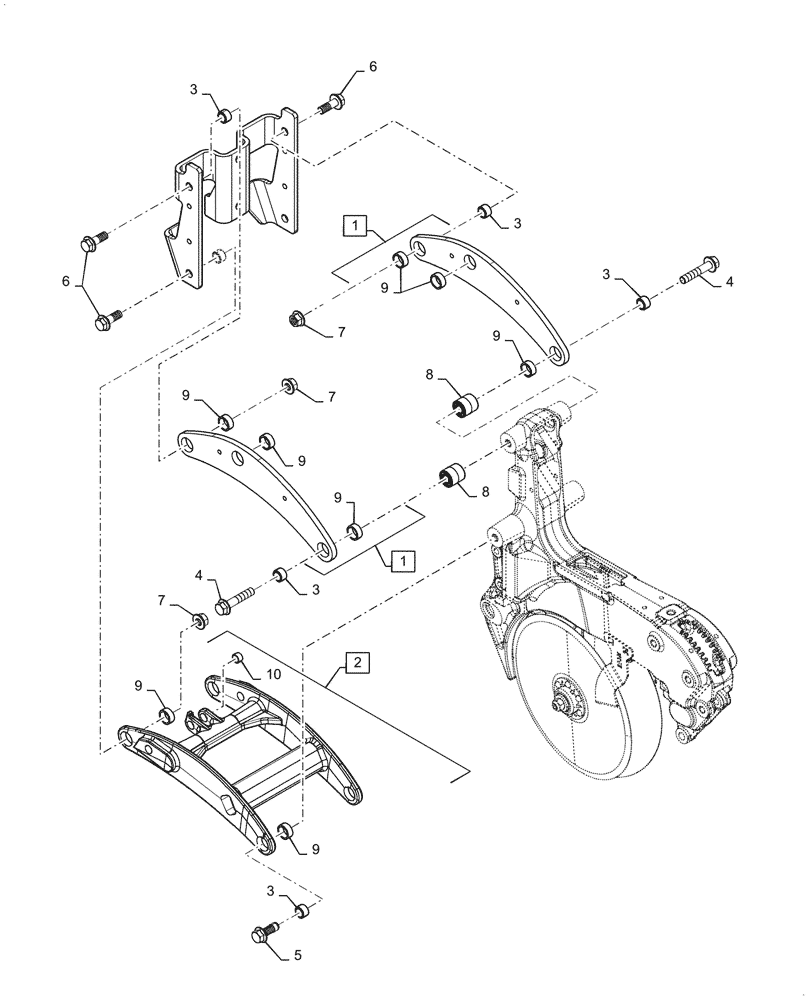

Запчасти Case IH 2160 (79.105.AH[01]) - ROW UNIT LINKS 16 INCH (79) - PLANTING

1

47906848

LINK

16 Inch Upper, Incl 9, for Rows 4 - 6, 10 - 13, 16 - 19, 22, 23, 27 - 29, for Other Rows See Figure 79.105.AH [02]

2шт.

2

47906846

ARM

Lower Link, Incl 9, 10

1шт.

3

47434057

BUSHING

Link Pivot

8шт.

4

47714045

BOLT

M16 x 80 10.9 znd

2шт.

5

47714037

BOLT

M16 x 45 10.9 znd

2шт.

6

87698746

BOLT,Hex, M16 x 45mm, Cl 10.9

4шт.

7

87016581

FLANGE NUT,M16 x 2, CI 10

4шт.

8

47566868

SUPPORT

Hopper Pivot

2шт.

9

47968668

BUSHING

1 ID x 1.25 OD, Pressed In

7шт.

10

47601470

BUSHING

2шт.
