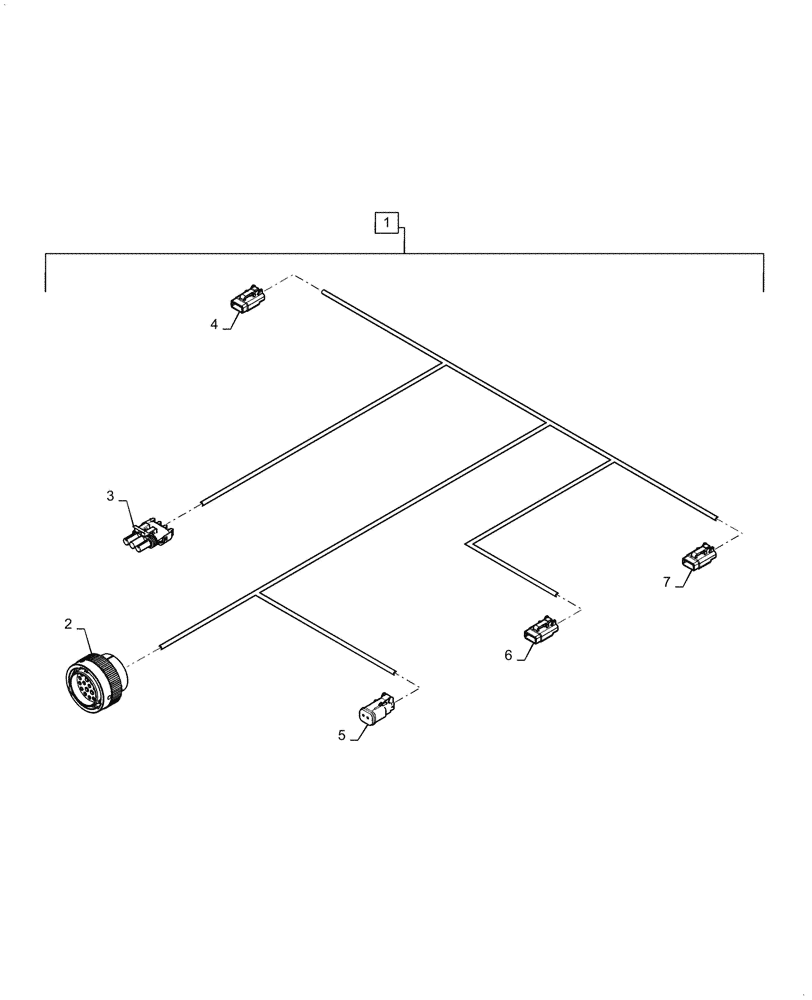

Запчасти Case IH 2160 (55.516.AL[05]) - BULK FILL HARNESS 2160 (55) - ELECTRICAL SYSTEMS

1

48007893

WIRE HARNESS

Assembly, Incl 2 - 7

1шт.

2

47712801

WIRE CONNECTOR

UCM

1шт.

2

87695623

ELEC. TERMINAL PIN

9шт.

2

84068583

PLUG,12 - 16 Ga, White

12шт.

3

87644909

WIRE CONNECTOR,Female, 3 Pins

Bulk Fill Lights

1шт.

3

87704524

ELEC CONNECTOR,Pin, Size 12

3шт.

3

87686742

PLUG

1шт.

3

87692858

ELEC CONNECTOR,Male

1шт.

4

87696551

CONTACT HOUSING,Female, 3 Pole

Bin 1 Level

1шт.

4

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

3шт.

4

87705586

WEDGE

1шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

Bulk Fill Fan Valve

1шт.

5

87695623

ELEC. TERMINAL PIN

2шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

6

87696551

CONTACT HOUSING,Female, 3 Pole

Bulk Fill Fan Feedback

1шт.

6

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

3шт.

6

87705586

WEDGE

1шт.

7

87696551

CONTACT HOUSING,Female, 3 Pole

Bin 2 Level

1шт.

7

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

3шт.

7

87705586

WEDGE

1шт.
