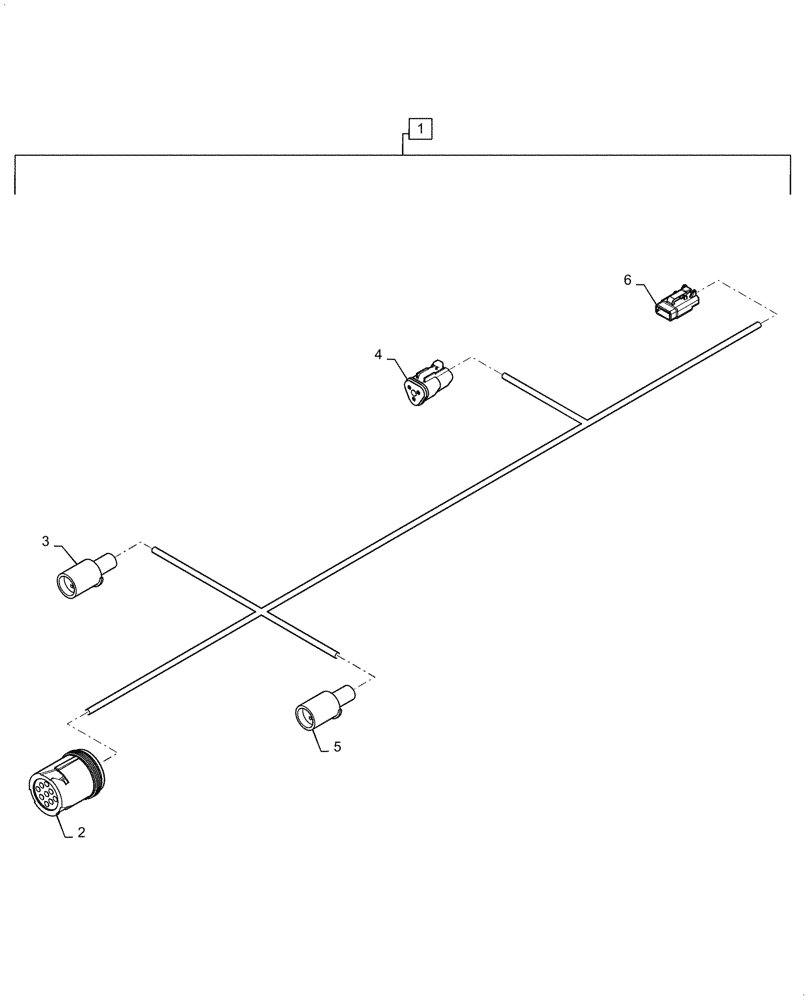

Запчасти Case IH 2160 (55.370.AA[02]) - HIGH FLOAT TRACK STEERING HARNESS (55) - ELECTRICAL SYSTEMS

1

48007901

WIRE HARNESS

Assembly, Incl 2 - 6

1шт.

2

87706948

Steering Wheeled

1шт.

2

87695623

ELEC. TERMINAL PIN

Cavities A - G

7шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavities H, J

2шт.

3

84137498

ELEC CONNECTOR

Steering Pressure 1

1шт.

3

87695623

ELEC. TERMINAL PIN

2шт.

4

87695580

ELEC CONNECTOR,Female, 3 Pole

Wheel Angle

1шт.

4

87695623

ELEC. TERMINAL PIN

3шт.

4

84074639

LOCKING TAB,Wedge Lock

1шт.

5

84137498

ELEC CONNECTOR

Steering Pressure

1шт.

5

87695623

ELEC. TERMINAL PIN

2шт.

6

87696551

CONTACT HOUSING,Female, 3 Pole

RH Wheel Speed

1шт.

6

87695623

ELEC. TERMINAL PIN

3шт.

6

87705586

WEDGE

1шт.
