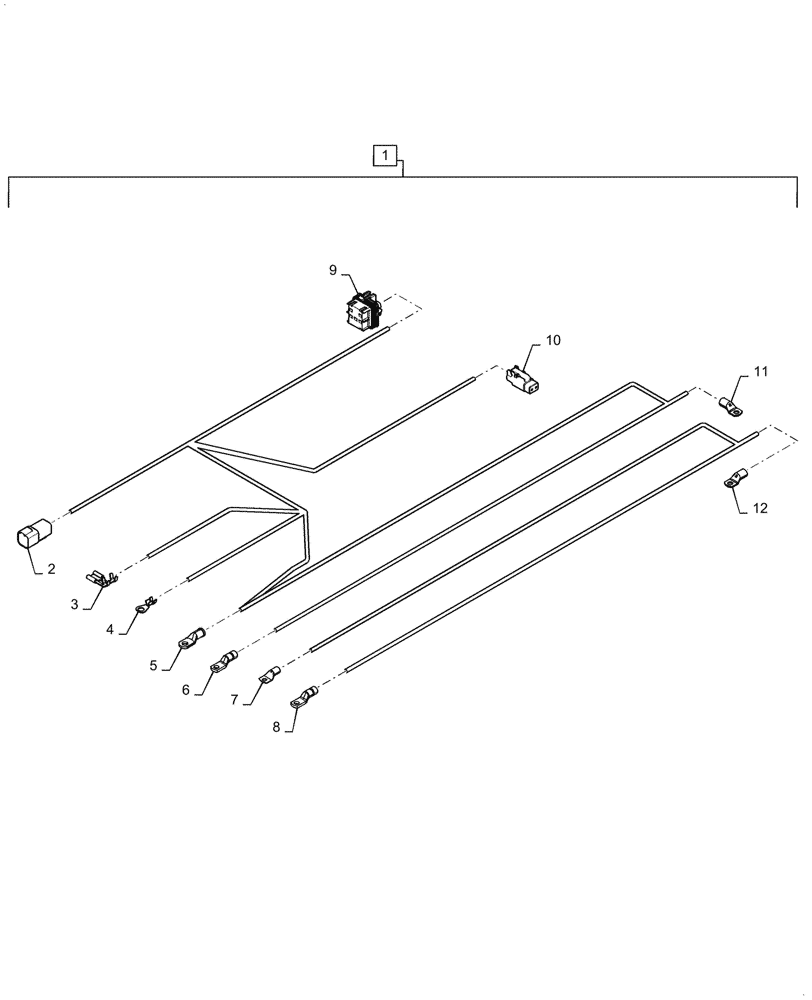

Запчасти Case IH 2160 (55.301.AA[10]) - ALTERNATOR HARNESS ASSSEMBLY, 2160 (55) - ELECTRICAL SYSTEMS

1

48007888

WIRE HARNESS

Includes 2 - 12

1шт.

2

87695579

WIRE CONNECTOR

Alternator Control

1шт.

2

87695623

ELEC. TERMINAL PIN

Cavities 2 - 6

5шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavity 1

1шт.

2

84322203

CLIP

Mounting

1шт.

2

87694147

WEDGE,Locking, Green

1шт.

3

87695521

Alternator Speed

1шт.

4

84127304

TERMINAL

Alternator Voltage

1шт.

5

84207853

ELEC CONNECTOR,25.00 - 35.00mm

Alternator Positive

1шт.

6

84138833

TERMINAL

PDM Poisitive

1шт.

7

84309053

TERMINAL

Alternator Negative

1шт.

8

84138833

TERMINAL

PDM Ground

1шт.

9

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

Excitation Relay

1шт.

9

87697691

TERMINAL

Cavities 1 - 4

4шт.

9

87686742

PLUG

Cavity 5

1шт.

9

84179509

RELAY

12V

1шт.

9

87705088

WEDGE

1шт.

10

87696093

ELEC CONNECTOR,Female, 2 Cavities

Excitation Resistor

1шт.

10

87695623

ELEC. TERMINAL PIN

2шт.

10

84322203

CLIP

Mounting Clip

1шт.

10

87696145

LOCKING TAB

1шт.

11

47629692

TERMINAL

Battery Positive

1шт.

12

47629692

TERMINAL

Battery Negative

1шт.
