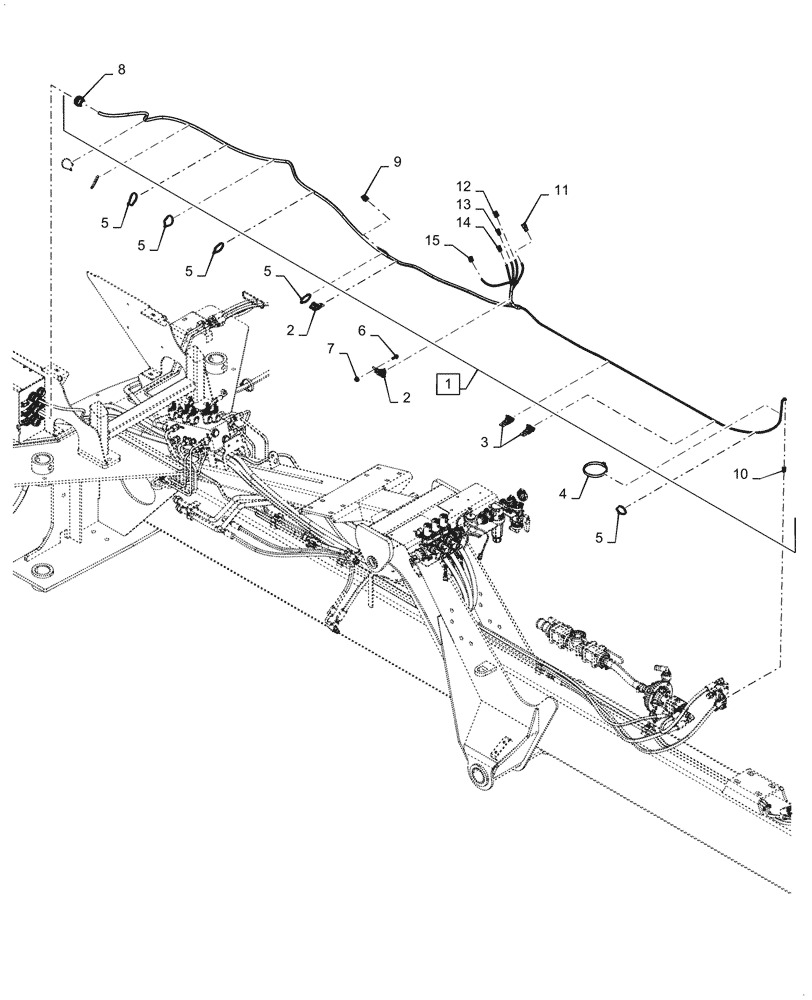

Запчасти Case IH 2160 (55.110.AB[03]) - LIQUID FERTILIZER SECTION HARNESS 1260 (55) - ELECTRICAL SYSTEMS

1

47595602

WIRE HARNESS

Liquid Fertilizer Section Incl 8-15

1шт.

2

48008971

MOUNT

P Clamp Size B

2шт.

3

47999791

P Clamp Size A

MOUNT

2шт.

4

87502039

CABLE TIE

Medium

1шт.

5

87502038

CABLE TIE

Small

7шт.

6

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

7

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

8

84178653

ELEC CONNECTOR

UCM

1шт.

8

84068583

PLUG,12 - 16 Ga, White

5шт.

9

87688712

WIRE CONNECTOR,Female

Fuse

1шт.

9

87688863

CAP

Covering

1шт.

9

87693742

FUSE,5A

Blade

1шт.

10

87695582

ELEC CONNECTOR,Female, 2 Pole

Fertilizer Valve

1шт.

10

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

11

87695548

TERMINAL CONNECTOR

Fertilizer Flow

1шт.

11

87695625

WIRE CONNECTOR,Locking, Green

1шт.

12

87695549

ELEC CONNECTOR,Female, 3 Cavities

Fertilizer Section 1

1шт.

12

84058193

LOCKING TAB,Wedge Lock

1шт.

13

87695549

ELEC CONNECTOR,Female, 3 Cavities

Fertilizer Section 2

1шт.

13

84058193

LOCKING TAB,Wedge Lock

1шт.

14

87695549

ELEC CONNECTOR,Female, 3 Cavities

Fertilizer Section 3

1шт.

14

84058193

LOCKING TAB,Wedge Lock

1шт.

15

84078681

WIRE CONNECTOR,Female

Pressure Transducer

1шт.
