Запчасти Case IH 2160 (55.015.AB[08]) - WIRE HARNESS FRAME, 36 ROW (55) - ELECTRICAL SYSTEMS

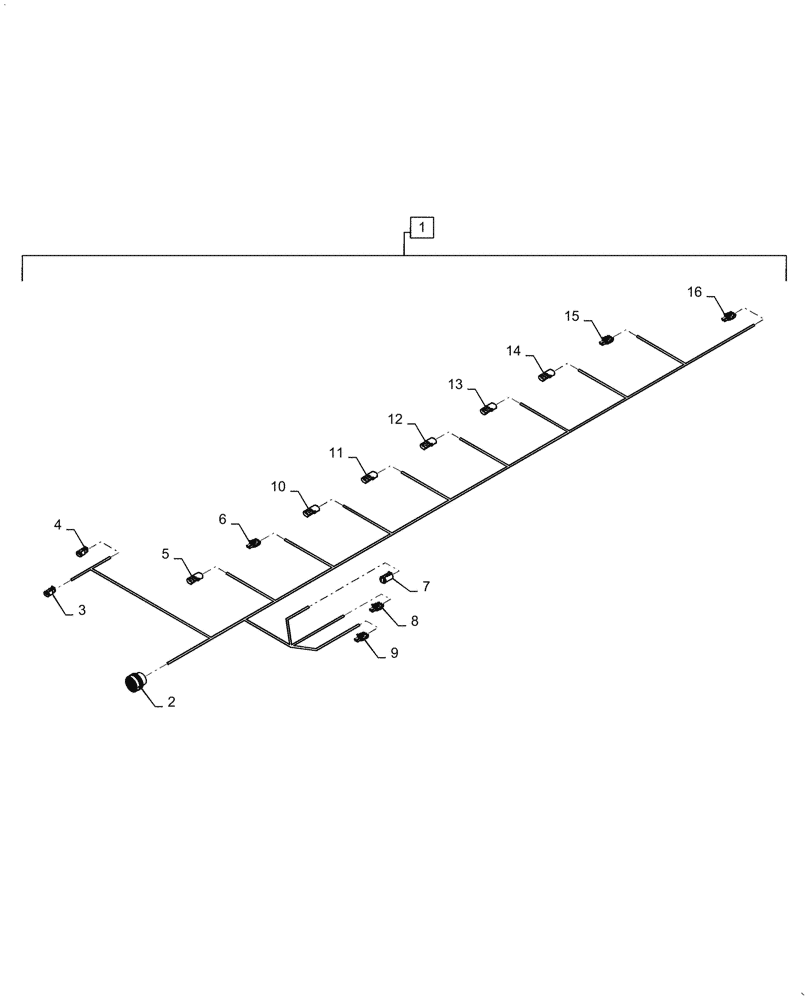

Схема запчастей Case IH 2160 - (55.015.AB[08]) - WIRE HARNESS FRAME, 36 ROW (55) - ELECTRICAL SYSTEMS
5
10
14
7
8
9
11
12
2
16
13
4
6
15
3
1

Артикул

Название

Примечание

Количество

1

47595572

WIRE HARNESS

Assembly, Incl 2 - 16

1шт.

2

84526555

MULTIPOLE CONNECTOR

Frame Harness

1шт.

2

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Cavity 1

1шт.

2

87695623

ELEC. TERMINAL PIN

Cavities 4, 5, 7 - 9, 11, 13 - 15, 18 - 21, 18 - 31

17шт.

2

87695623

ELEC. TERMINAL PIN

Cavities 2, 3, 6, 10, 12, 16, 17, 22 - 27

13шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Lift Assist 1

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavity 1

1шт.

3

87695623

ELEC. TERMINAL PIN

Cavity 2

1шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

4

87695582

ELEC CONNECTOR,Female, 2 Pole

Lift Assist 2

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavity 1

1шт.

4

87695623

ELEC. TERMINAL PIN

Cavity 2

1шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

5

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Coil 3

1шт.

5

87695623

ELEC. TERMINAL PIN

2шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

Coil 4

1шт.

6

87695623

ELEC. TERMINAL PIN

1шт.

7

87694153

CONTACT HOUSING,Female, 4 Cavities

Coil 8 & 9

1шт.

7

87694153

CONTACT HOUSING,Female, 4 Cavities

4шт.

7

84074640

LOCKING TAB,Wedge Lock

1шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

Coil 10

1шт.

8

87695623

ELEC. TERMINAL PIN

2шт.

9

87692855

CONTACT HOUSING,Male, 2 Cavities

Coil 11

1шт.

9

87695623

ELEC. TERMINAL PIN

2шт.

10

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Coil 6

1шт.

10

87695623

ELEC. TERMINAL PIN

2шт.

11

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Coil 1

1шт.

11

87695623

ELEC. TERMINAL PIN

2шт.

12

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Coil 7

1шт.

12

87695623

ELEC. TERMINAL PIN

2шт.

13

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Coil 5

1шт.

13

87695623

ELEC. TERMINAL PIN

2шт.

14

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Coil 2

1шт.

14

87695623

ELEC. TERMINAL PIN

2шт.

15

87692855

CONTACT HOUSING,Male, 2 Cavities

Valve 18, LH Marker

1шт.

15

87695623

ELEC. TERMINAL PIN

1шт.

16

87692855

CONTACT HOUSING,Male, 2 Cavities

Valve 19, RH Marker

1шт.

16

87695623

ELEC. TERMINAL PIN

1шт.

Выбрано товаров: 38
