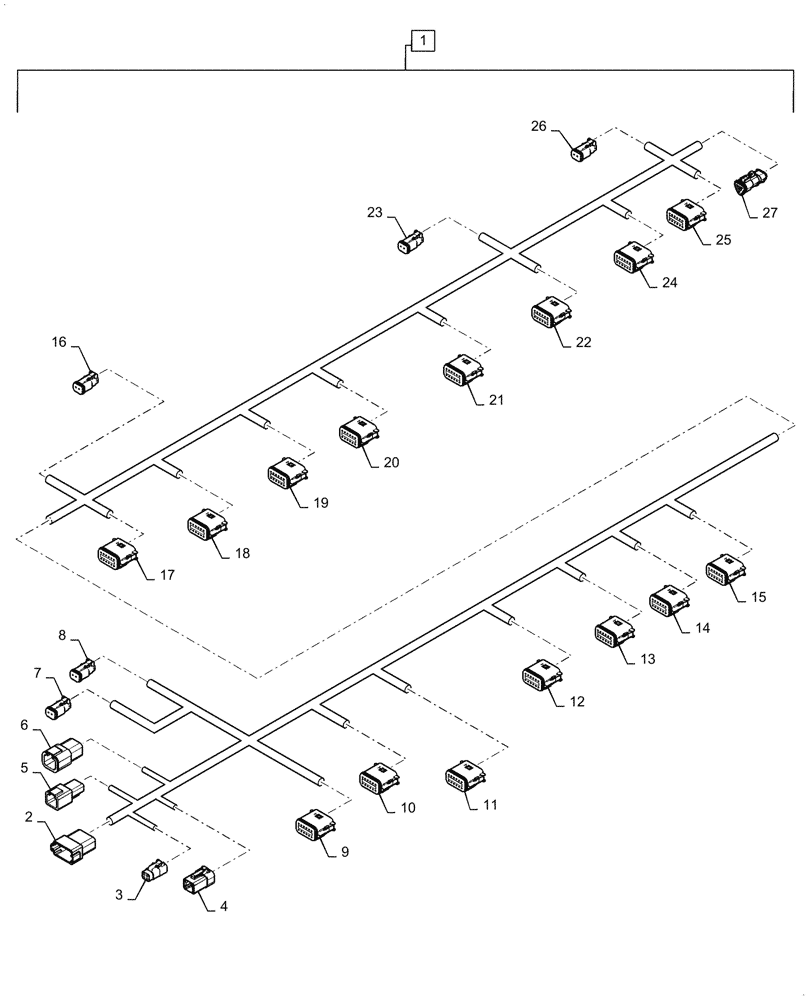

Запчасти Case IH 2160 (55.015.AB[05]) - WIRE HARNESS RIGHT CONTROL BUS, 36 ROW (55) - ELECTRICAL SYSTEMS

1

47745722

WIRE HARNESS

Assembly, Incl 2 - 27, 36 Row 30"

1шт.

1

47745732

WIRE HARNESS

Assembly, Incl 2 - 27, 36 Row 22"

1шт.

2

87700152

ELEC CONNECTOR,Female, 12 Cavities

to Tool Main

1шт.

2

87695623

ELEC. TERMINAL PIN

Cavities 1 - 10

10шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavities 11, 12

2шт.

2

87698541

LOCKING TAB,Wedge Lock, 12-Pin

1шт.

3

87696138

ELEC CONNECTOR

Center Bus

1шт.

3

87704042

TERMINAL

4шт.

3

87696149

ELEC CONNECTOR

Wedge Lock

1шт.

4

87707727

WIRE CONNECTOR

Right Bus Power 1

1шт.

4

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

4шт.

4

87707796

ELEC CONNECTOR

Wedge Lock

1шт.

5

84190315

WIRE CONNECTOR

RH Bus Power

1шт.

5

87704524

ELEC CONNECTOR,Pin, Size 12

2шт.

5

84190316

WIRE CONNECTOR

Wedge Lock

1шт.

6

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

Right Bus Power 2

1шт.

6

87704524

ELEC CONNECTOR,Pin, Size 12

4шт.

6

87707798

WEDGE

1шт.

7

87695582

ELEC CONNECTOR,Female, 2 Pole

Vacuum B Valve

1шт.

7

87695623

ELEC. TERMINAL PIN

2шт.

7

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

8

87695582

ELEC CONNECTOR,Female, 2 Pole

Alternator Valve

1шт.

8

87695623

ELEC. TERMINAL PIN

2шт.

8

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

9

87696075

ELEC CONNECTOR

Row 22

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

9

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

9

87695651

LOCKING TAB,Wedge Lock

1шт.

10

87696075

ELEC CONNECTOR

Row 23

1шт.

10

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

10

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

10

87695651

LOCKING TAB,Wedge Lock

1шт.

11

87696075

ELEC CONNECTOR

Row 24

1шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

11

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

11

87695651

LOCKING TAB,Wedge Lock

1шт.

12

87696075

ELEC CONNECTOR

Row 25

1шт.

12

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

12

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

12

87695651

LOCKING TAB,Wedge Lock

1шт.

13

87696075

ELEC CONNECTOR

Row 26

1шт.

13

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

13

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

13

87695651

LOCKING TAB,Wedge Lock

1шт.

14

87696075

ELEC CONNECTOR

Row 27

1шт.

14

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

14

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

14

87695651

LOCKING TAB,Wedge Lock

1шт.

15

87696075

ELEC CONNECTOR

Row 28

1шт.

15

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

15

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

15

87695651

LOCKING TAB,Wedge Lock

1шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Caster Position 2

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

16

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

17

87696075

ELEC CONNECTOR

Row 29

1шт.

17

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

17

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

17

87695651

LOCKING TAB,Wedge Lock

1шт.

18

87696075

ELEC CONNECTOR

Row 30

1шт.

18

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

18

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

18

87695651

LOCKING TAB,Wedge Lock

1шт.

19

87696075

ELEC CONNECTOR

Row 31

1шт.

19

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

19

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

19

87695651

LOCKING TAB,Wedge Lock

1шт.

20

87696075

ELEC CONNECTOR

Row 32

1шт.

20

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

20

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

20

87695651

LOCKING TAB,Wedge Lock

1шт.

21

87696075

ELEC CONNECTOR

Row 33

1шт.

21

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

21

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

21

87695651

LOCKING TAB,Wedge Lock

1шт.

22

87696075

ELEC CONNECTOR

Row 34

1шт.

22

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

22

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

22

87695651

LOCKING TAB,Wedge Lock

1шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

Row Lift

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

23

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

24

87696075

ELEC CONNECTOR

Row 35

1шт.

24

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

24

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

24

87695651

LOCKING TAB,Wedge Lock

1шт.

25

87696075

ELEC CONNECTOR

Row 36

1шт.

25

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cavities 1 - 6, 8

7шт.

25

84068583

PLUG,12 - 16 Ga, White

Cavities 7, 9 - 12

5шт.

25

87695651

LOCKING TAB,Wedge Lock

1шт.

26

87695582

ELEC CONNECTOR,Female, 2 Pole

RH Caster Position

1шт.

26

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

26

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

27

84058093

SOCKET

Can 1 Terminator

1шт.

27

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

3шт.

27

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

27

84058194

PLUG

Wedge Lock

1шт.
