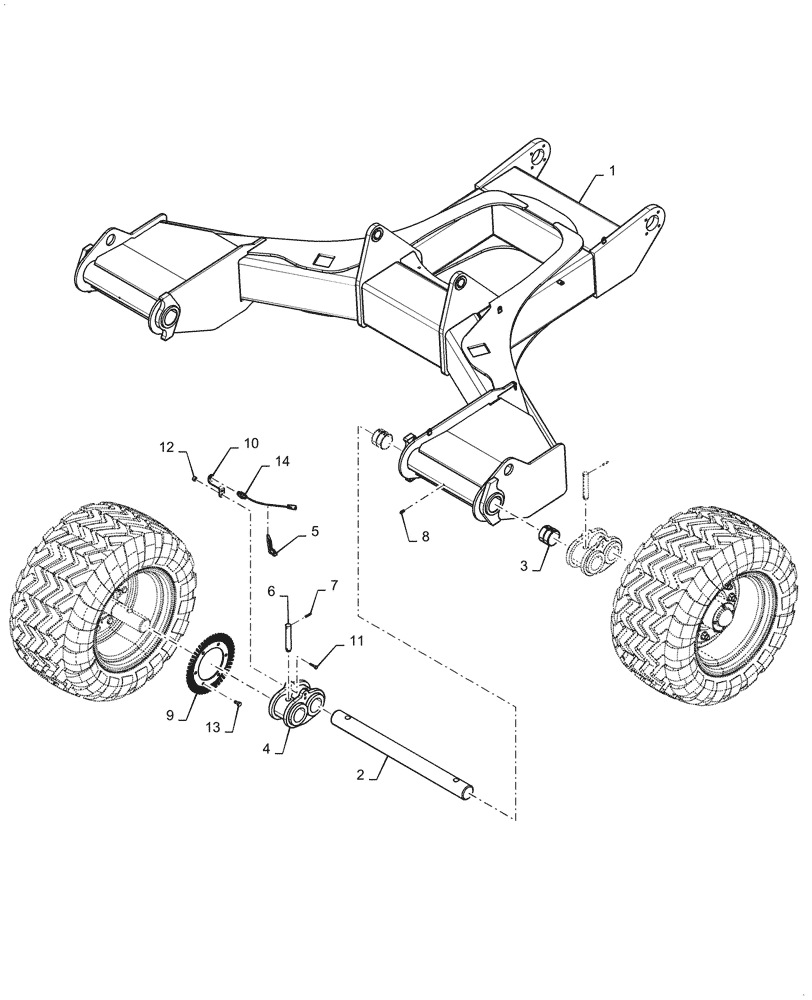

Запчасти Case IH 2160 (44.100.AD[18]) - CARRIER ASSEMBLY, 22 INCH SPACING (44) - WHEELS

1

47886807

FRAME

Carrier, 22"

1шт.

2

87723383

SHAFT

Axle

2шт.

3

87419947

GROOVED BUSHING,76.45mm ID x 82.55mm OD x 63.5mm L

4шт.

4

87753670

SUPPORT

Walk Beam Assembly

4шт.

5

87502038

CABLE TIE

1шт.

6

87693681

LOCK PIN

8шт.

7

47390041

COILED PIN

16шт.

8

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

9

84199319

SPROCKET

1шт.

10

87494821

BRACKET

Sensor Mount

1шт.

11

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

12

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

2шт.

13

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

6шт.

14

324049A1

SENSOR

Hall Effect, Zero Speed

1шт.
