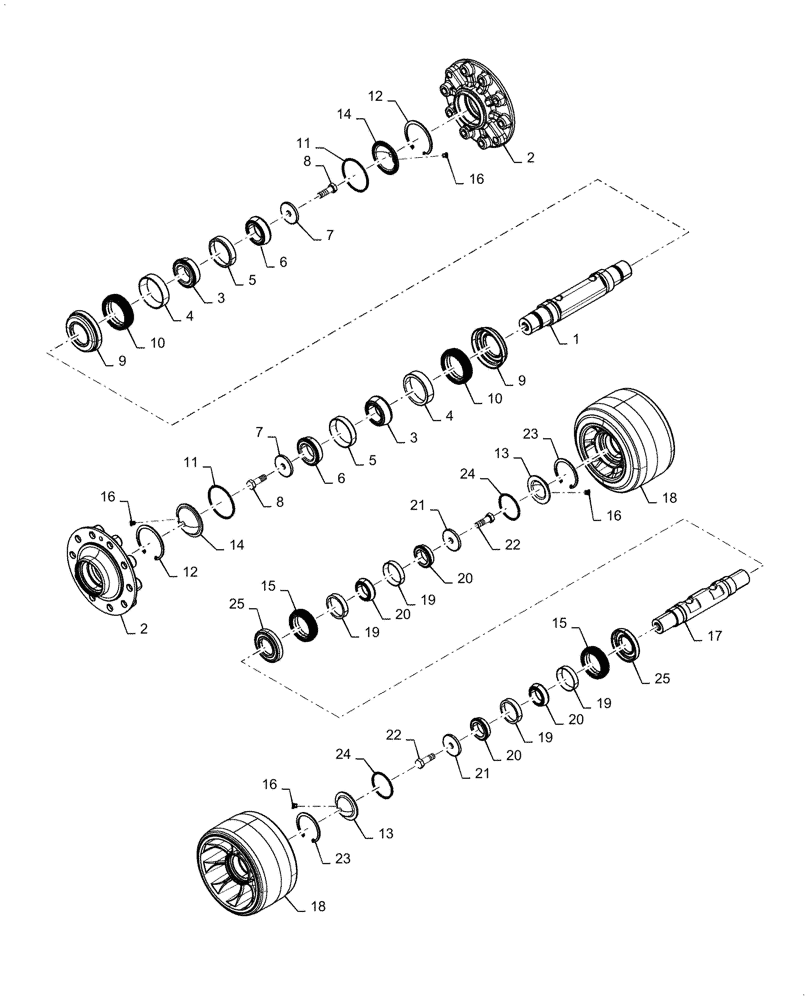

Запчасти Case IH 2160 (44.100.AD[04]) - IDLER AND ROLLER ASSEMBLY (44) - WHEELS

1

84478718

IDLE SHAFT

Rear Idler

1шт.

2

47939029

HUB

Idler

2шт.

3

87750406

BEARING CONE,66.68mm ID x 38.35mm W

2шт.

4

87750407

BEARING CUP,122.24mm OD x 29.72mm W

2шт.

5

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

2шт.

6

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

2шт.

7

87387720

RETAINER

Bearing

2шт.

8

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

2шт.

9

84223192

CUP

Seal

2шт.

10

84198542

SEAL,96mm ID x 125.35mm OD x 33mm W

2шт.

11

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

12

370014

SNAP RING,M130, Internal

2шт.

13

47608298

COVER

Idler Hub

1шт.

14

47608296

COVER

Idler

2шт.

15

84198544

SEAL,84mm ID x 113.85mm OD x 29mm W

1шт.

16

86598043

PLUG,M12 x 1.5 ORB

2шт.

17

47727753

SHAFT

Roller

1шт.

18

47827309

WHEEL ASSY

24'

2шт.

19

625743C1

BEARING CUP,90mm OD x 18.5mm W

4шт.

20

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

4шт.

21

87387720

RETAINER

Bearing

2шт.

22

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

2шт.

23

301652

SNAP RING,M110 x 4mm, Internal

2шт.

24

86984140

O-RING,97mm ID x 6.99mm Thk

2шт.

25

84223194

CUP,65.93mm ID x 125mm OD x 12.15mm Thk

2шт.
