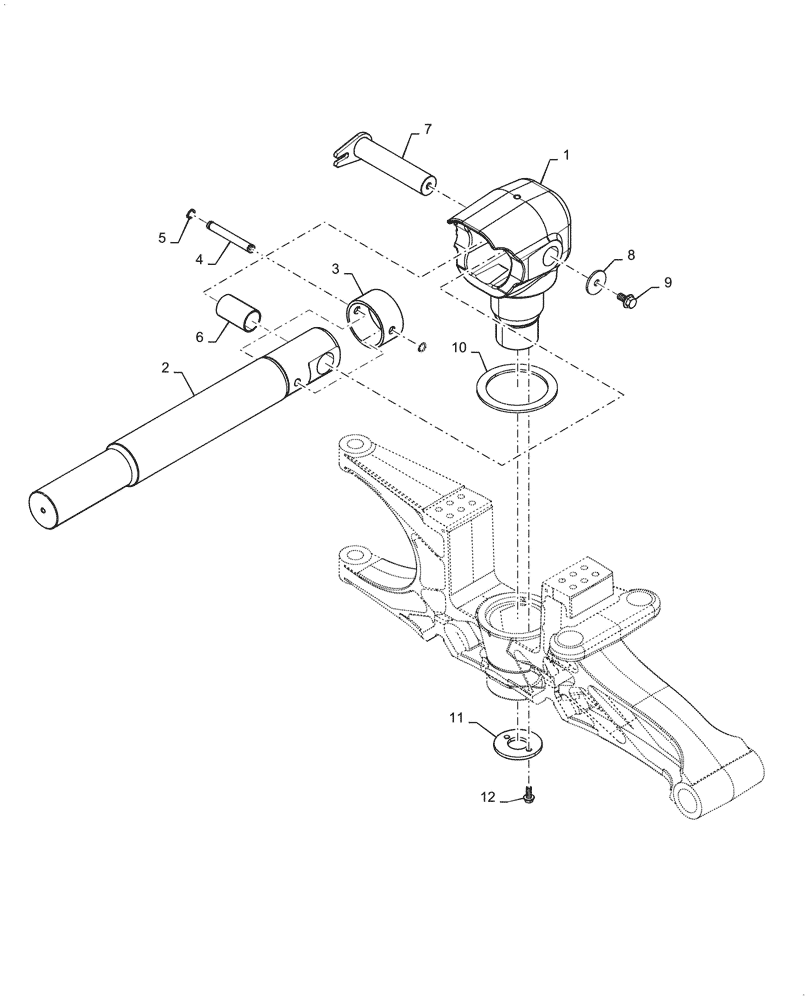

Запчасти Case IH 2160 (44.100.AD[03]) - AXLE PIVOT, 2160 (44) - WHEELS

1

47821045

PIVOT

Track main

1шт.

2

47838391

SHAFT

Axle, Track

1шт.

3

47838389

BUSHING

Axle Shaft, Track

1шт.

4

47838409

PIN

0.75' x 5.125'

1шт.

5

300627

SNAP RING,M19, External

2шт.

6

47840494

BUSHING

2' ID x 2.25' OD

1шт.

7

47840506

PIN

1шт.

8

84017220

WASHER,16.5mm ID x 62.5mm OD x 5mm Thk

1шт.

9

47715974

BOLT

M16 x 30

1шт.

10

47838402

WASHER

16.5 x 62.5 x 5

1шт.

11

48057976

SUPPORT

Track Pivot, Stop

1шт.

12

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

2шт.
