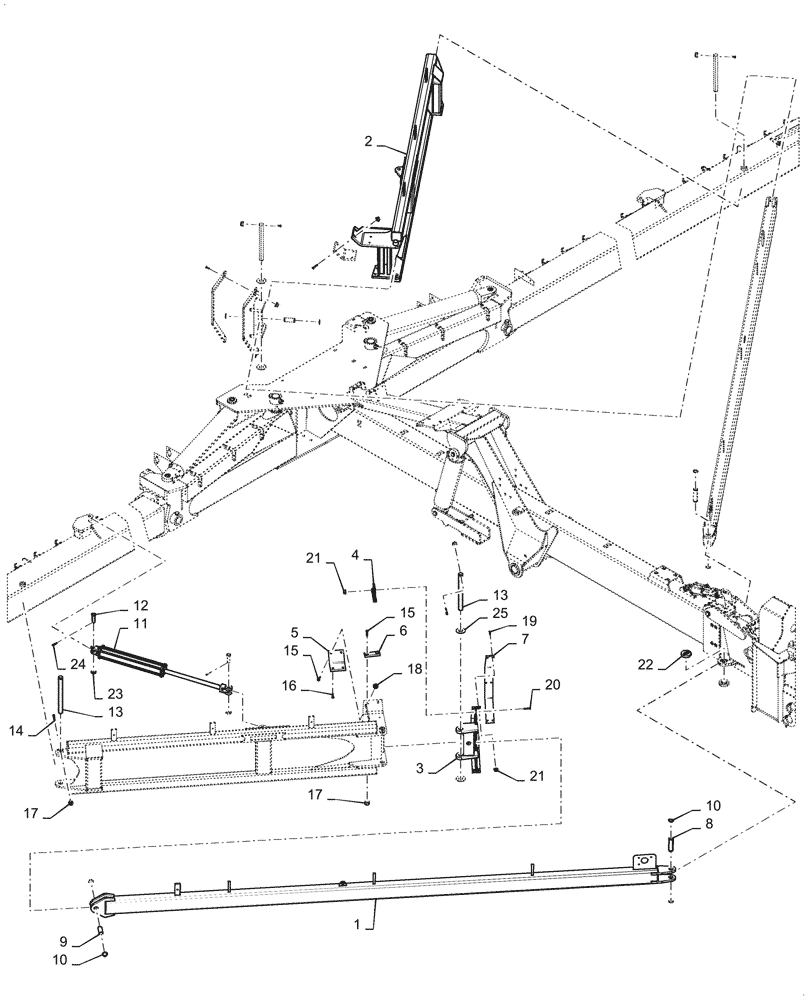

Запчасти Case IH 2160 (37.120.AO[06]) - DRAFT TUBES, 36 ROW 66 FOOT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84412629

FRAME

Draft Tube, 66'

1шт.

2

47676275

Rear Draft, LH

1шт.

2

47676263

Rear Draft, RH

1шт.

3

84131988

FRAME

Center Draft

1шт.

4

87671075

SUPPORT

Hydraulic Hose

1шт.

5

87671069

PAD

147.6mm x 240mm x 19.1mm

1шт.

6

87757690

PAD

46mm x 147.6mm x 19.1mm

1шт.

7

87671065

PAD

76.2mm x 860mm x 12.7mm

1шт.

8

48030343

PIN

39.9mm x 131mm

1шт.

9

87708895

PIN

38.1mm x 89mm

1шт.

10

86632531

SNAP RING,#150, Ext

4шт.

11

87671040

HYDRAULIC CYLINDER,38.1mm Rod, 609.6mm Stroke

1шт.

12

86632568

HEADED PIN,1" x 3 1/2", G5

2шт.

13

87757677

PIN

38.1mm x 425mm

2шт.

14

86624981

BOLT,Hex, M12 x 85mm, Cl 8.8

2шт.

15

381527

M12 x 60

4шт.

16

300502

HEX SOC SCREW,FLAT, M12 x 1.75 x 40mm, Cl 8.8

2шт.

17

100038

NUT,M12 x 1.75, Cl 8

4шт.

18

86619803

FLANGE NUT

M12 x 1.75, CL 8

2шт.

19

72181588

HEX SOC SCREW,Flat Hd, M10 x 35mm, Cl 8.8

6шт.

20

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

21

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

8шт.

22

87671027

BUSHING

95.3mm x 41mm

2шт.

23

87036175

WASHER,1.06" ID x 2" OD x 0.22" Thk

2шт.

24

87041

COTTER PIN,1/4" x 1 3/4"

2шт.

25

432584A1

WASHER

2шт.
