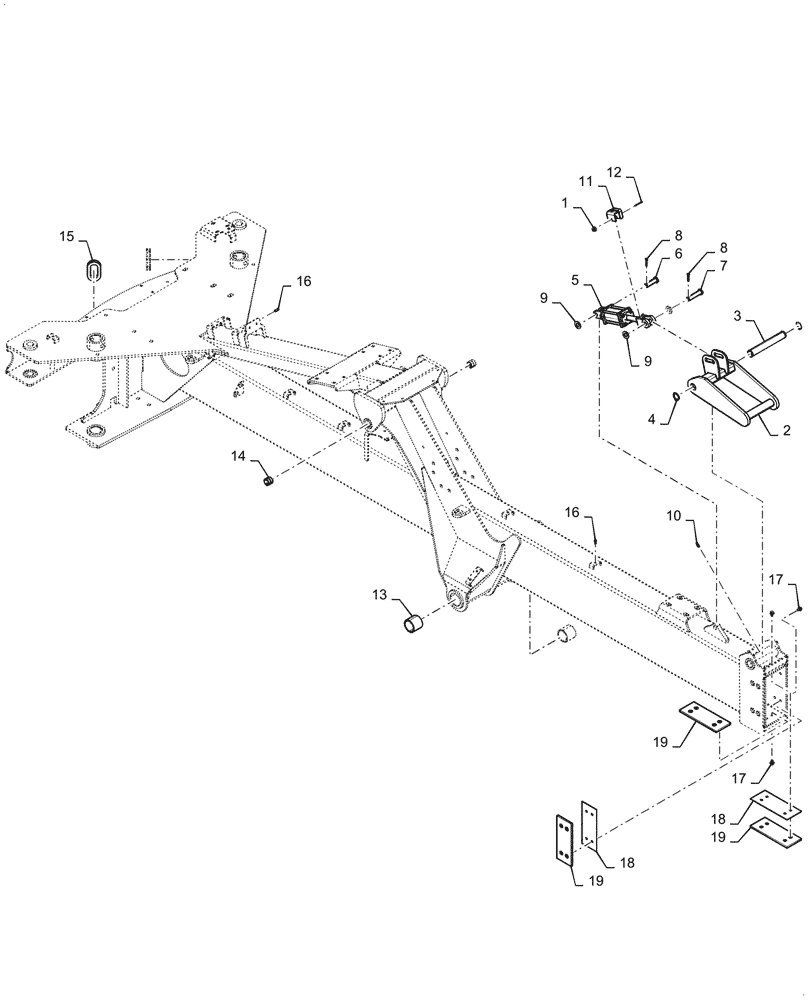

Запчасти Case IH 2160 (37.100.AF[15]) - OUTER HITCH, 36 ROW (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

353308

NUT,M6 x 1.0, Cl 8

2шт.

2

87485054

LATCH

Outer Hitch

1шт.

3

87477223

HITCH PIN

1шт.

4

86625149

SNAP RING,#175, Ext

2шт.

5

87671044

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 76.2mm Stroke

2шт.

6

86632568

HEADED PIN,1" x 3 1/2", G5

1шт.

7

86632569

HEADED PIN,1" x 4 1/2", G5

1шт.

8

87041

COTTER PIN,1/4" x 1 3/4"

2шт.

9

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

3шт.

10

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

11

84216996

STOP LOCK

1шт.

12

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

1шт.

13

87503180

BUSHING

2шт.

14

7825

GROOVED BUSHING

2шт.

15

48033967

GROMMET

Rubber

2шт.

16

47643870

NUT

11шт.

17

86977727

FLANGE BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

16шт.

18

87757688

WEAR PAD

3шт.

19

47646644

PAD

Molded M12 x 1.25" Threaded Inserts

4шт.

20

48036633

Outer Med With Decals and Reflectors

HITCH

1шт.
