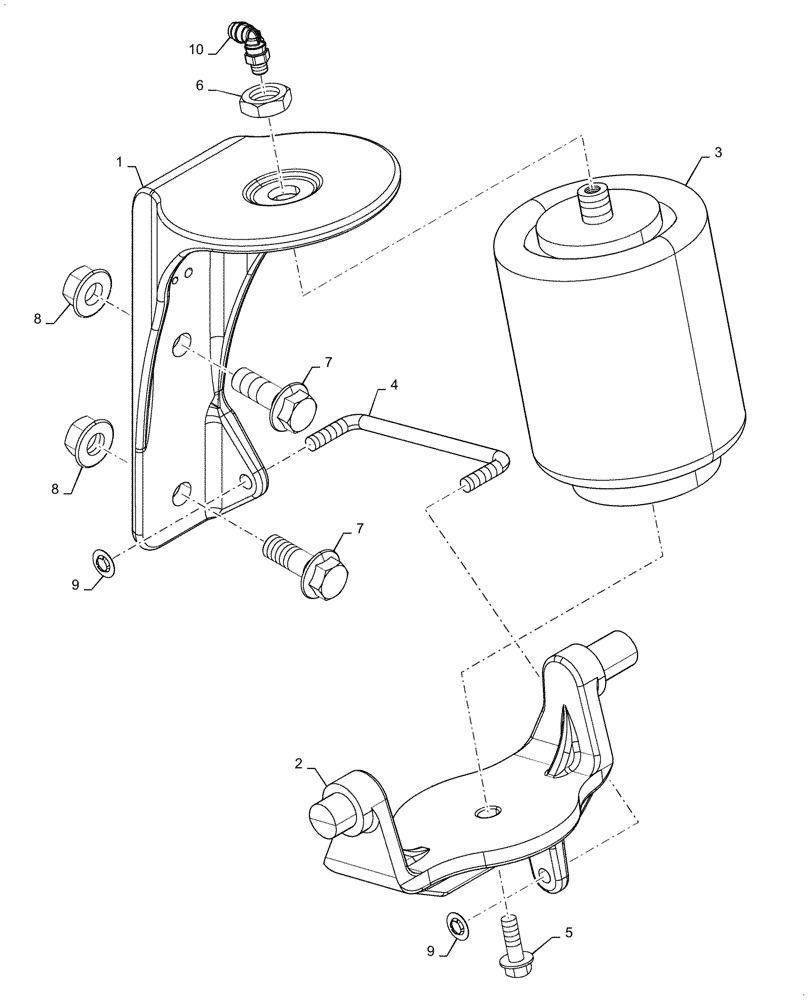

Запчасти Case IH 2160 (36.100.AB[15]) - PNEUMATIC DOWN PRESSURE W/ RU LOCKUP (36) - PNEUMATIC SYSTEM

1

47655375

BRACKET

Spring Mounting, Upper

1шт.

2

47707131

BRACKET

Spring Mounting, Lower

1шт.

3

47563524

SPRING

Air

1шт.

4

47477648

ROD

1шт.

5

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

6

320771

NUT,Thin, M20 x 1.5, Cl 04

1шт.

7

87698746

BOLT,Hex, M16 x 45mm, Cl 10.9

2шт.

8

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

9

87625622

RETAINER

3/8' Bolt Retainer, Push-On

2шт.

10

84394592

FITTING

Elbow, 90°

1шт.
