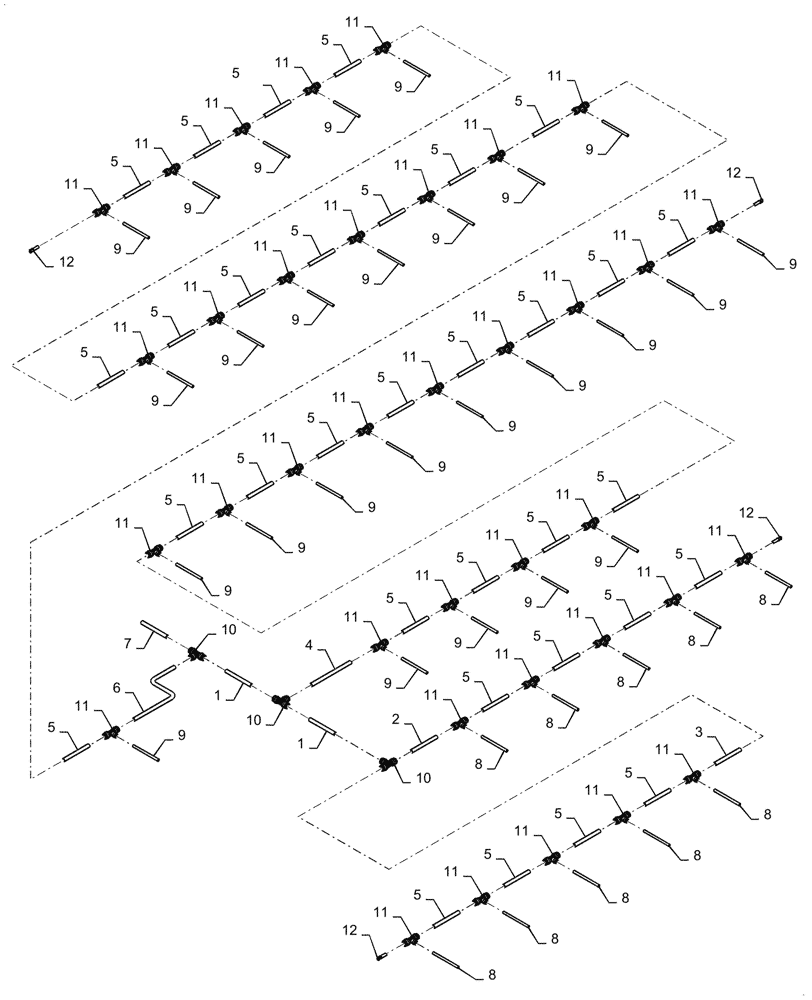

Запчасти Case IH 2160 (36.100.AB[01]) - PNEUMATIC LINES UP FORCE RESIDUE MANAGER (36) - PNEUMATIC SYSTEM
![Схема запчастей Case IH 2160 - (36.100.AB[01]) - PNEUMATIC LINES UP FORCE RESIDUE MANAGER (36) - PNEUMATIC SYSTEM](https://partsell.ru/storage/images/caseih/5515568.png)
6
9
5
11
9
5
5
8
11
9
9
5
11
10
5
9
5
12
4
12
11
8
8
5
9
8
5
5
11
5
8
5
11
11
9
11
11
11
1
5
11
5
9
9
11
8
11
11
11
11
9
7
1
5
9
11
5
5
11
5
11
9
11
10
11
11
11
9
11
11
11
11
5
2
9
9
11
9
12
8
10
5
5
9
8
8
9
8
11
11
5
11
3
5
9
5
9
5
9
12
11
9
11
5
9
9
5
5
5
5
5
9
11
11
11
9
5
5
№
Артикул
Название
Примечание
Количество
1
47619236
TUBE
Bulk Cut to Length, 3/8" x 50mm L
2шт.
2
47619236
TUBE
Bulk Cut to Length, 3/8" x 140mm L
1шт.
3
47619236
TUBE
Bulk Cut to Length, 3/8" x 380mm L
1шт.
4
47619236
TUBE
Bulk Cut to Length, 3/8" x 3360mm L
1шт.
5
47619236
TUBE
Bulk Cut to Length, 3/8" x 540mm L
32шт.
6
47619236
TUBE
Bulk Cut to Length, 3/8" x 3440mm L
1шт.
7
47619236
TUBE
Bulk Cut to Length, 3/8" x 2950mm L
1шт.
8
47595486
TUBE
Bulk Cut to Length, 1/4" x 1190mm L
10шт.
9
47595486
TUBE
Bulk Cut to Length, 1/4" x 1350mm L
26шт.
10
47633932
HYD CONNECTOR
3/8" x 3/8" x 3/8"
3шт.
11
47633933
HYD CONNECTOR
3/8" x 3/8" x 1/4"
36шт.
12
47705231
PLUG
Plastic, 3/8"
4шт.
Выбрано товаров: 12
