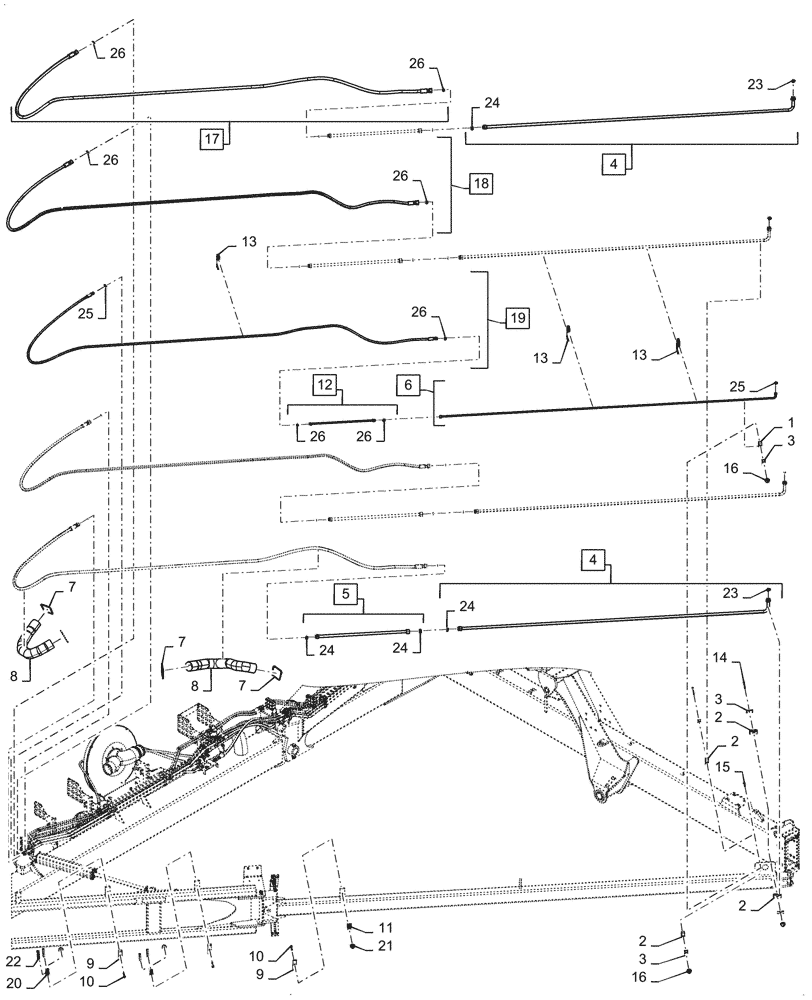

Запчасти Case IH 2160 (35.744.AD[11]) - RH DRAFT TUBE HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

87000149

CLAMP

1шт.

2

87000152

CLAMP,25.4mm D Clamping Pipes x 2

4шт.

3

87000230

PLATE

5шт.

4

84532902

HYD TUBE

3500mm L, Incl 23, 24

4шт.

5

84532939

HYD TUBE

978mm L, Incl 24

4шт.

6

84532904

HYD TUBE

3679mm L, Incl 25

1шт.

7

87502038

CABLE TIE

4шт.

8

47798341

2шт.

9

87545575

HOSE CLAMP

4шт.

10

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

4шт.

11

48008971

MOUNT

1шт.

12

84532941

HYD TUBE

679mm L, Incl 26

1шт.

13

47692514

SUPPORT

Hydraulic Tube

3шт.

14

86528166

BOLT,M8 x 1.25 x 126.58mm, Cl 8.8

2шт.

15

87017615

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

16

87681210

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

17

47980371

HYDRAULIC HOSE

6000mm L, Incl 26

2шт.

18

47980372

HYDRAULIC HOSE

6050mm L, Incl 26

2шт.

19

47980374

HYDRAULIC HOSE

6000mm L, Incl 25, 26

1шт.

20

84360209

BASE

3шт.

21

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

22

84360212

CABLE TIE,294.2mm L, Nylon

6шт.

23

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

24

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

26

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

11шт.
