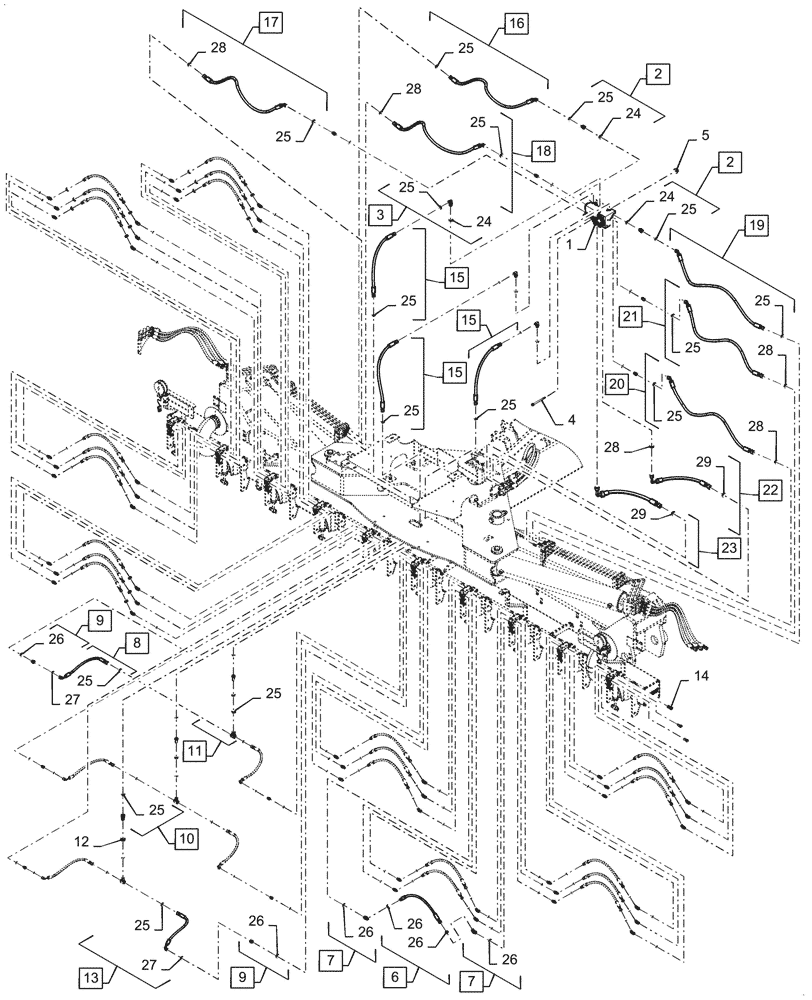

Запчасти Case IH 2160 (35.100.BI[33]) - CENTER HYDRAULIC HOSES, DOWN PRESSURE, 36 ROW 22 (35) - HYDRAULIC SYSTEMS

1

47794274

VALVE PRESSURE RELIE

Delta Force

1шт.

2

87672176

HYD CONNECTOR

Incl 24, 25

6шт.

3

84390792

90 ELBOW

Incl 24, 25

3шт.

4

87681213

BOLT,Hex, M10 x 140mm, Cl 10.9

3шт.

5

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

6

47925417

HYDRAULIC HOSE

600mm L, Incl 26

24шт.

7

83961740

ELBOW

Incl 26

48шт.

8

47978990

HYDRAULIC HOSE

510mm L, Incl 25, 27

3шт.

9

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

Incl 26

6шт.

10

87317454

UNION

Incl 25

3шт.

11

84561113

BRANCH TEE

Incl 25

3шт.

12

87381287

LOCK NUT

3шт.

13

47978991

HYDRAULIC HOSE

570mm L, Incl 25, 27

3шт.

14

76349

PLUG,9/16" - 18 ORB

6шт.

15

48013117

HYDRAULIC HOSE

690mm L, Incl 25

3шт.

16

48016575

HYDRAULIC HOSE

1160mm L, Incl 25

1шт.

17

48016576

HYDRAULIC HOSE

1150mm L, Incl 25, 28

1шт.

18

48016577

HYDRAULIC HOSE

1140mm L, Incl 25, 28

1шт.

19

48016578

HYDRAULIC HOSE

1200mm L, Incl 25

1шт.

20

48016579

HYDRAULIC HOSE

1190mm L, Incl 25, 28

1шт.

21

48016580

HYDRAULIC HOSE

1180mm L, Incl 25, 28

1шт.

22

48021857

HYDRAULIC HOSE

540mm L, Incl 28, 29

1шт.

23

48021873

HYDRAULIC HOSE

580mm L, Incl 29

1шт.

24

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

9шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

27шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

78шт.

27

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

28

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

29

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.
