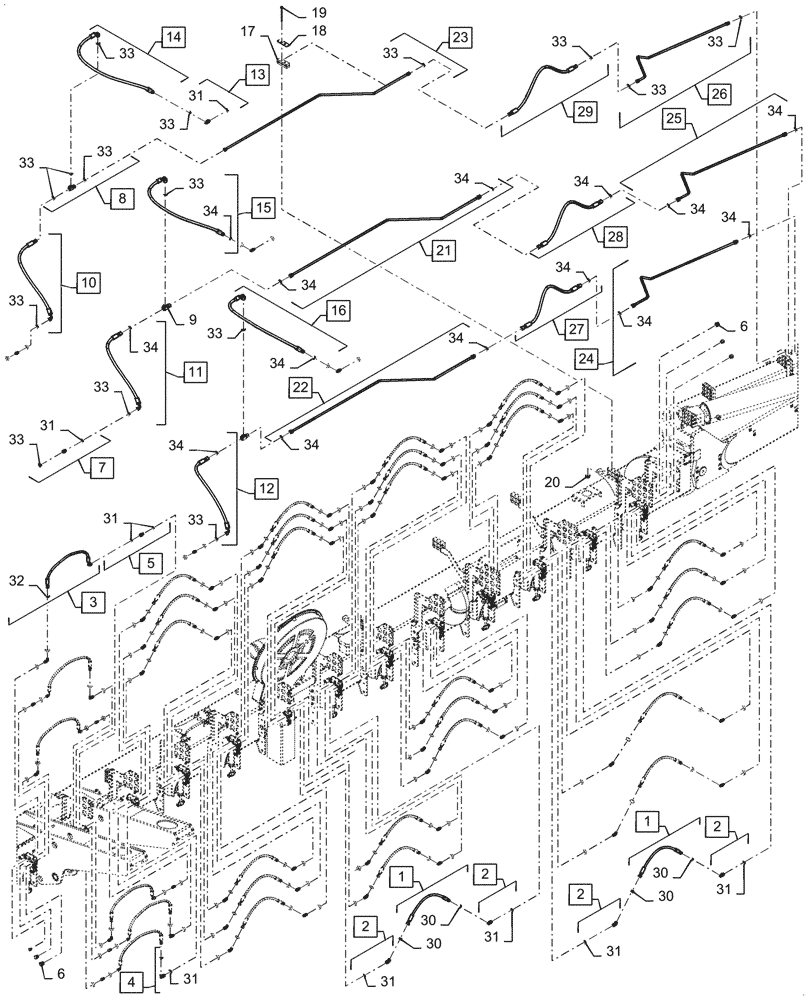

Запчасти Case IH 2160 (35.100.BI[31]) - LH HYDRAULIC HOSES, DOWN PRESSURE, 36 ROW 22 (35) - HYDRAULIC SYSTEMS

1

47925417

HYDRAULIC HOSE

600mm L, Incl 30

27шт.

2

83961740

ELBOW

Incl 31

54шт.

3

47981403

HYDRAULIC HOSE

770mm L, Incl 32

6шт.

4

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 31

6шт.

5

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

Incl 31

6шт.

6

76349

PLUG,9/16" - 18 ORB

6шт.

7

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 31, 33

3шт.

8

47726686

UNION TEE

Incl 33

1шт.

9

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

2шт.

10

48015276

HYDRAULIC HOSE

900mm L, Incl 33

1шт.

11

48015277

HYDRAULIC HOSE

850mm L, Incl 33, 34

1шт.

12

48015278

HYDRAULIC HOSE

910mm L, Incl 33, 34

1шт.

13

47809446

ELBOW

Incl 31, 33

3шт.

14

48015279

HYDRAULIC HOSE

1240mm L, Incl 33

1шт.

15

48015280

HYDRAULIC HOSE

1150mm L, Incl 33, 34

1шт.

16

48015281

HYDRAULIC HOSE

1120mm L, Incl 33, 34

1шт.

17

84176018

CLAMP

3шт.

18

47582385

BRACKET

3шт.

19

87681208

BOLT,Hex, M8 X 130, Class 10.9

6шт.

20

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

21

47947263

TUBE

Markers Outer, 1925mm L, Incl 34,

1шт.

22

47947265

TUBE

Outer Wing Fold, 1974mm L, Incl 34

1шт.

23

47947262

HYD TUBE

1871mm L, Incl 33

1шт.

24

47947252

TUBE

Inner Wing Fold, 1489mm L, Incl 34

1шт.

25

48069327

HYD TUBE

Downforce, LH, 1440mm L, Incl 34

1шт.

26

47948610

HYD TUBE

1400mm L, Incl 33

1шт.

27

48008799

HYDRAULIC HOSE

880mm L, Incl 34

1шт.

28

48006860

HYDRAULIC HOSE

900mm L, Incl 34

1шт.

29

48006861

HYDRAULIC HOSE

940mm L, Incl 33

1шт.

30

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

27шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

73шт.

32

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

6шт.

33

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

16шт.

34

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

10шт.
