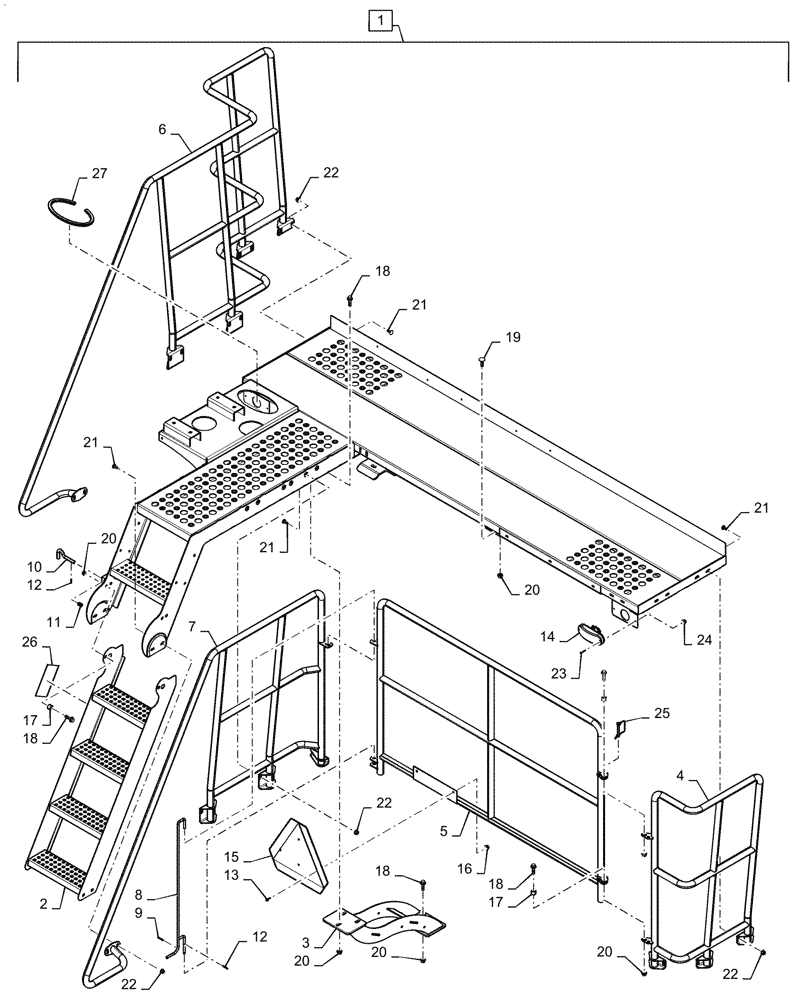

Запчасти Case IH 2160 (90.118.AC[01]) - BULK FILL PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47880255

Platform, Red

1шт.

2

47976129

LADDER

Folding, Red

1шт.

3

48040491

SUPPORT

Bridge Platform Assembly, Red

1шт.

4

84410227

HANDRAIL

Platform Right, Black

1шт.

5

84410228

HANDRAIL

Swing Gate, Black

1шт.

6

84410239

HANDRAIL

Platform Left, Black

1шт.

7

84410240

HANDRAIL

Right Ladder, Black

1шт.

8

47541229

ROD

Gate Lock, Black

1шт.

9

86624096

COTTER PIN,Int, 3/16 x .080"

1шт.

10

1319740C2

PIN,3mm OD x 20mm OAL

1шт.

11

87000071

COMPRESSION SPRING,47.2mm Free Length

1шт.

12

86637813

PIN,3.17mm OD x 25mm L, Coiled

2шт.

13

412742A1

WARNING SIGN

Triangle, Steel

1шт.

14

87627854

LIGHT ASSY.,12V, 27W, Red

Tail Lamp

2шт.

15

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

16

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

17

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

4шт.

18

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

1шт.

19

86512428

CARRIAGE BOLT,Sq Nk, M12 x 40mm, Cl 8.8, Full Thd

4шт.

20

9804279

FLANGE NUT,Hex, M12, Cl 8

14шт.

21

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

24шт.

22

9804278

FLANGE NUT,M10 x 1.5, Cl 8

24шт.

23

86511924

SCREW,Pan, #10 - 24 x 1 1/4"

4шт.

24

523310

SERRATED NUT,Flng, #10 - 24, Gr 5

4шт.

25

87574044

PIN

1шт.

26

144371A1

WARNING DECAL

Warning, Stay Clear Ladder, EU

1шт.

27

1989613C1

SEAL

1шт.
