(79.105.AD[16]) - BULK FILL AIR SUPPLY TUBES 2160

Запчасти Case IH 2160 (79.105.AD[16]) - BULK FILL AIR SUPPLY TUBES 2160 (79) - PLANTING

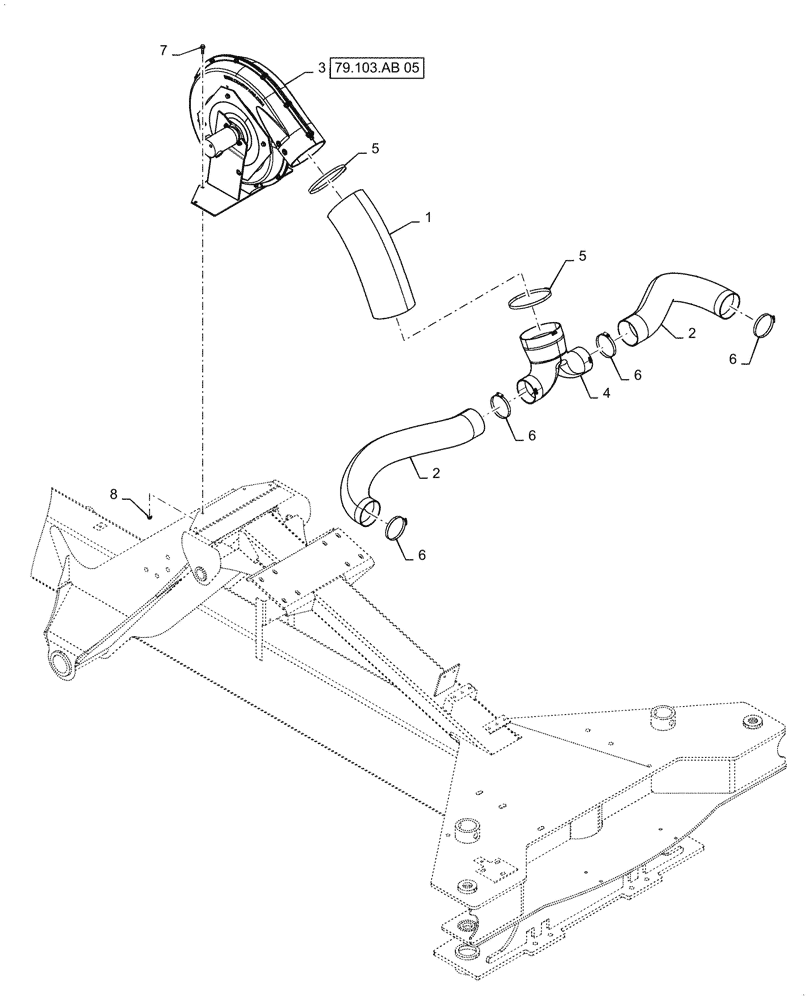

Схема запчастей Case IH 2160 - (79.105.AD[16]) - BULK FILL AIR SUPPLY TUBES 2160 (79) - PLANTING
79.103.ab 05
1
6
5
5
6
3
6
8
6
4
7
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84147676

HOSE,203.20 mm ID x 15240.00 mm

Bulk, Cut to Length 560mm L

1шт.

2

306385A1

HOSE

Bulk, Cut to Length 885mm L

2шт.

3

NSS

NOT SOLD SEPARAT

Not Serviced As Assembly, Follow Figure Link

1шт.

4

84130043

MANIFOLD

8" x 5 " Reducer

1шт.

5

76088794

HOSE CLAMP,8.12" - 9"

2шт.

6

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

4шт.

7

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

4шт.

8

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

Выбрано товаров: 8
