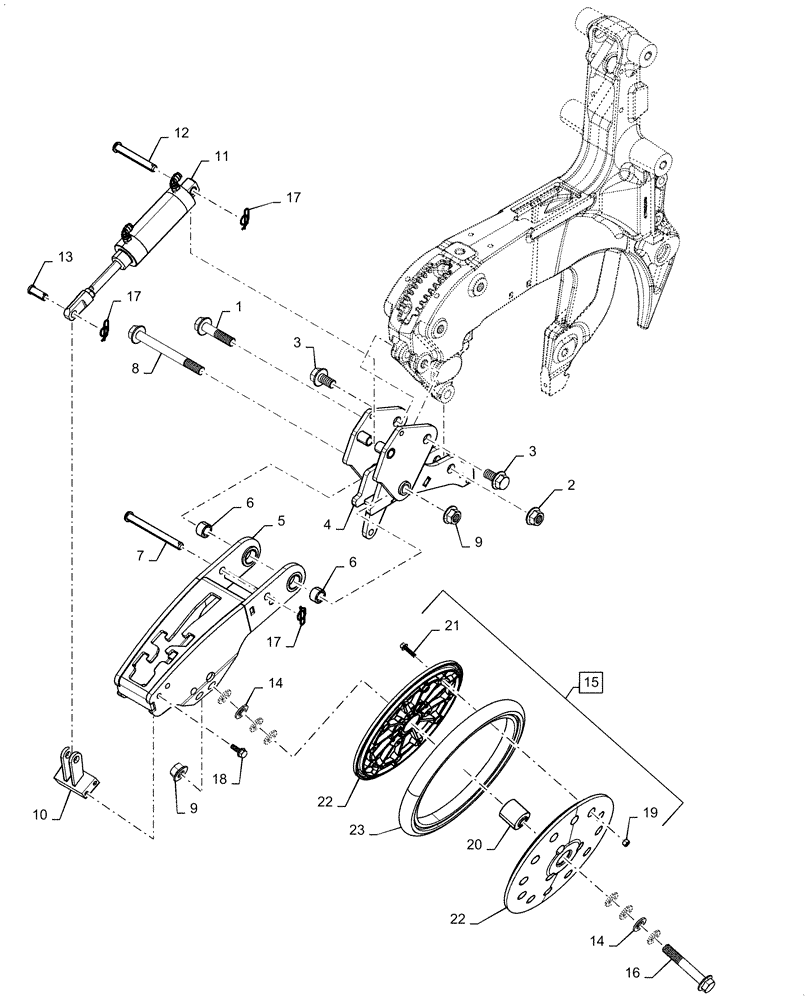

Запчасти Case IH 2160 (77.105.AF[06]) - AIR PINCH WHEEL CLOSING (77) - SEEDING/PLANTING

1

47410091

M16 x 70 mm

BOLT

1шт.

2

87016581

FLANGE NUT,M16 x 2, CI 10

1шт.

3

47715974

BOLT

M16 x 30 mm

2шт.

4

47793553

PLATE

Pinch Wheel Mount Red

1шт.

5

47777560

PLATE

Pinch Wheel Swing Arm

1шт.

6

47434057

BUSHING

Link Pivot

2шт.

7

47836834

PIN

Headed

1шт.

8

87698851

FLANGE BOLT,M16 x 160mm, Cl 10.9

1шт.

9

87016581

FLANGE NUT,M16 x 2, CI 10

3шт.

10

47795268

SUPPORT

Pinch Wheel

1шт.

11

47905360

LIFT CYLINDER

Air

1шт.

12

86624063

HEADED PIN,1/2" x 3 3/4"

1шт.

13

86636813

CLEVIS PIN,1/2" OD x 1-9/25" OAL

1шт.

14

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

16шт.

15

87695406

WHEEL ASSY,305.81mm OD x 25.4mm W

Incl 19 -23

2шт.

16

87698850

BOLT,M16 x 100mm, Cl 10.9

2шт.

17

47748003

CLIP

Locking

3шт.

18

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

19

87034810

NUT,1/4"-20, GA

15шт.

20

306007A1

NEEDLE BEARING,16mm ID x 40.25mm OD x 44.12mm W

1шт.

21

458-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

15шт.

22

87746243

RIM

Wheel

2шт.

23

87461340

TYRE/TIRE

1 x 12 "

1шт.
