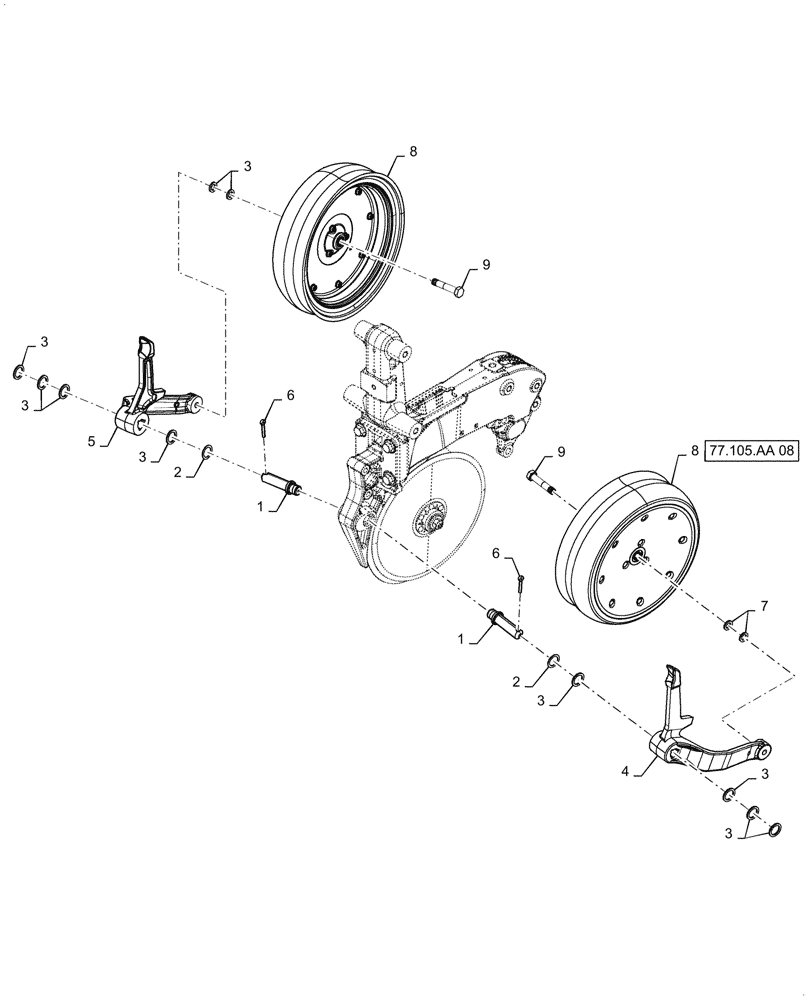

Запчасти Case IH 2160 (77.105.AA[09]) - FRONT RIGHT LEADING FLAT STANDARD GAUGE WHEEL (77) - SEEDING/PLANTING

1

47763409

PIN

Pivot Flanged

2шт.

2

86624173

WASHER,1.09" ID x 1.5" OD x 0.06" Thk

2шт.

3

86624174

WASHER,1.09" ID x 1.5" OD x 0.12" Thk

8шт.

4

47666981

ARM

Left Trailing Gauge Wheel Red

1шт.

5

47666986

ARM

Right Leading Gauge Wheel Red

1шт.

6

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

7

87023159

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

4шт.

8

21618

WHEEL ASSY

Cleaner 4.5 x 16 Flat

2шт.

9

47755873

BOLT

m16 x 80

2шт.
