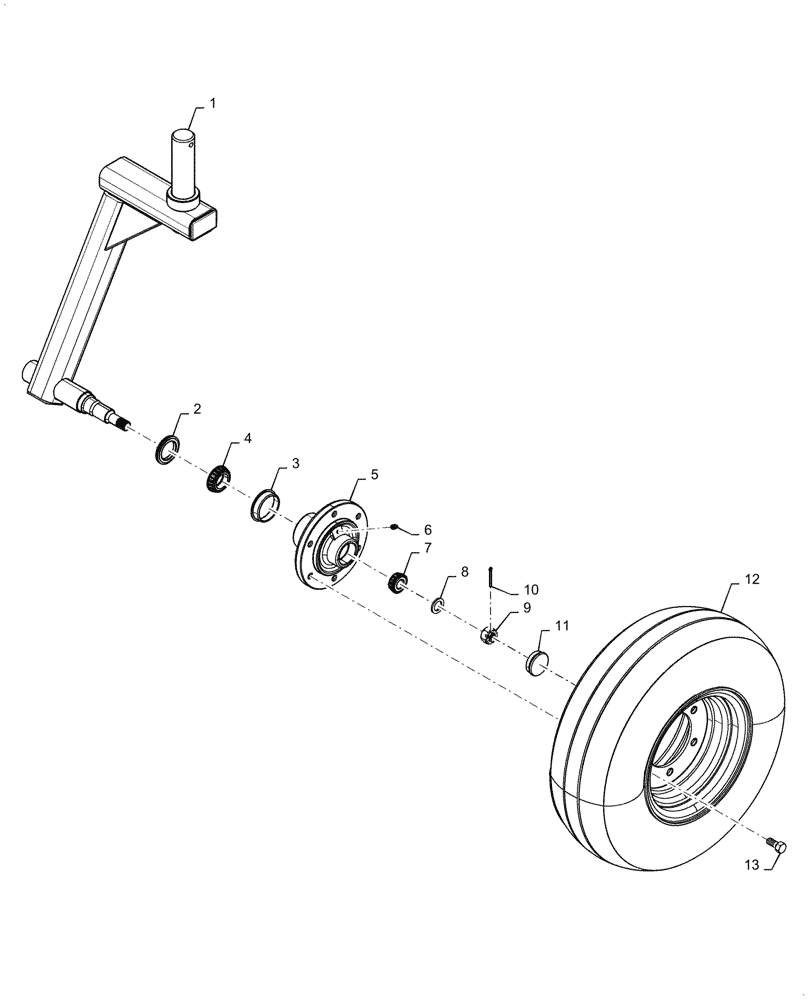

Запчасти Case IH 2160 (77.104.AB[11]) - MARKER 90 FOOT, CASTER ASSEMBLY (77) - SEEDING/PLANTING

1

87470294

FRAME

Marker Caster

1шт.

2

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

1шт.

3

472222R1

SLEEVE

1шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

5

427737A1

HUB

6 Bolt

1шт.

6

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

1шт.

8

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

1шт.

9

88886

SLOTTED NUT,3/4"-16

1шт.

10

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

11

47766212

HUB CAP

1шт.

12

10008260

LAND WHEEL

20.5 x 8 x 10

1шт.

13

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

6шт.
