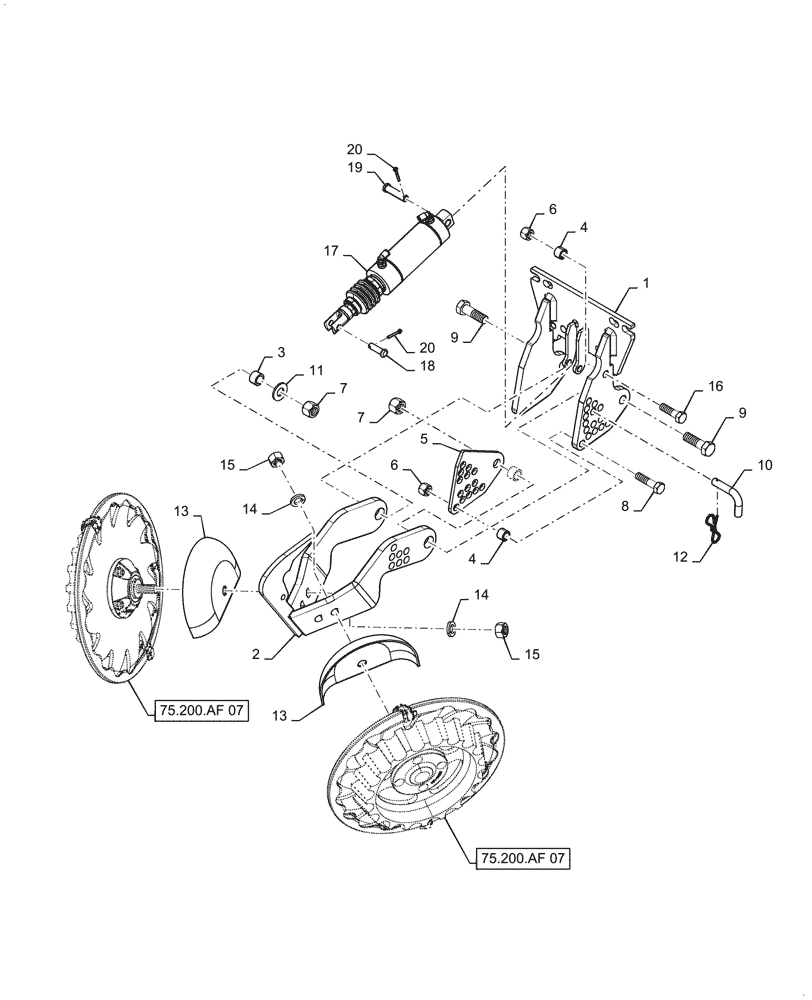

Запчасти Case IH 2160 (75.200.AF[11]) - FLOAT DEPTH BAND RESIDUE MANAGER NO-TILL (75) - SOIL PREPARATION

1

47832834

MOUNT

Short

1шт.

2

47832837

ARM

Narrow

1шт.

3

319317A1

BUSHING,16mm ID x 22.35mm OD x 14.29mm L

2шт.

4

87505329

SPACER

9/16

2шт.

5

84188627

PLATE

Secondary Adjustment

1шт.

6

87333862

NUT

2шт.

7

6395

LOCK NUT,5/8"-11, GB

2шт.

8

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

9

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

10

87505323

PIVOT PIN,12.7mm OD

1шт.

11

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

12

87505324

COTTER PIN

1шт.

13

319179A1

SHIELD

Residue Manager

2шт.

14

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

15

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

16

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

17

47721970

HYDRAULIC CYLINDER

1шт.

18

86624079

HEADED PIN,3/8" x 1 1/4", G2

1шт.

19

48036164

PIN

1шт.

20

80755

COTTER PIN,1/8" OD x 1" L

2шт.
