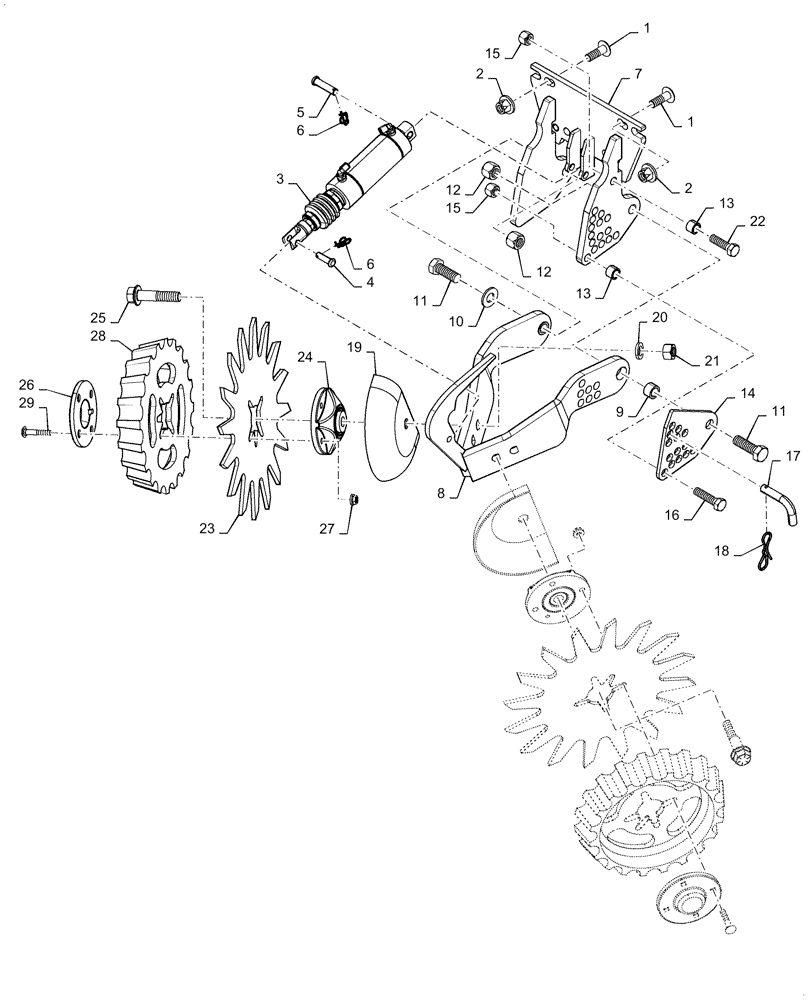

Запчасти Case IH 2160 (75.200.AF[04]) - FLOAT DEPTH BAND RESIDUE MANAGER TINE (75) - SOIL PREPARATION

1

87698852

CARRIAGE BOLT,M12 x 40mm, Cl 10.9

3шт.

2

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

3шт.

3

73368395

KIT

Cylinder Lift

1шт.

4

86624079

HEADED PIN,3/8" x 1 1/4", G2

1шт.

5

47839810

PIN

Clevis

1шт.

6

47839153

CLIP

Locking

2шт.

7

47832834

MOUNT

Short

1шт.

8

47832838

ARM

Wide

1шт.

8

47832837

ARM

Narrow

1шт.

9

319317A1

BUSHING,16mm ID x 22.35mm OD x 14.29mm L

2шт.

10

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

11

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

12

6395

LOCK NUT,5/8"-11, GB

2шт.

13

87505329

SPACER

9/16"

2шт.

14

84188627

PLATE

Secondary Adjustment

1шт.

15

87333862

NUT

1/2"

2шт.

16

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

17

87505323

PIVOT PIN,12.7mm OD

1шт.

18

87505324

COTTER PIN

Locking

1шт.

19

319179A1

SHIELD

Residue Manager

2шт.

20

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

21

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

22

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

23

108131A3

WHEEL,330.2mm OD x 6.35mm Thk

1шт.

24

108132A1

FLANGED BEARING

Hub

1шт.

25

47646107

BOLT

5/8"

1шт.

26

108130A1

HUB CAP

Casting

1шт.

27

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

28

84219470

GAUGE

Depth

1шт.

29

280660

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 3/4", Gr 5

4шт.
