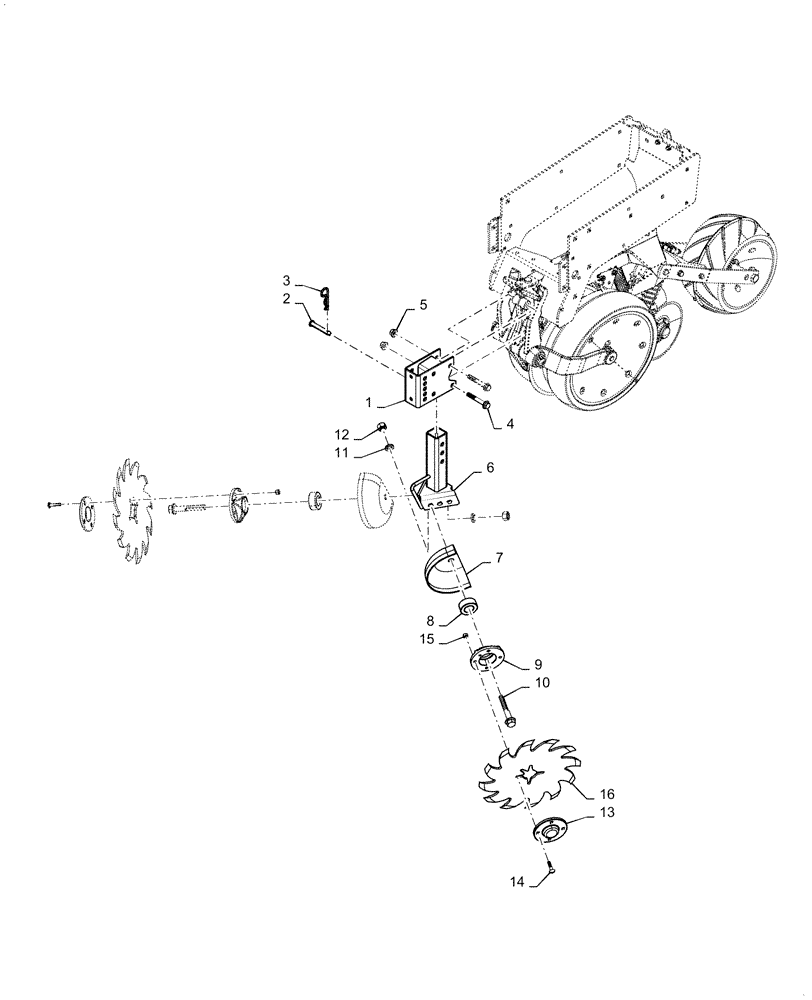

Запчасти Case IH 2160 (75.200.AF[03]) - RESIDUE MANAGER NO TILL (75) - SOIL PREPARATION

1

90974C1

BRACKET

Tillage Painted

1шт.

2

147404C1

PIN,12.7mm OD x 83mm L

1шт.

3

486830R1

COTTER PIN

1шт.

4

87698846

BOLT,Hvy Hex Flg, M12 x 80mm, Cl 10.9

2шт.

5

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

2шт.

6

87723401

STEM

Row Unit

1шт.

7

133801A2

BEARING COVER

Shield

2шт.

8

108139A1

SPACER

3/4"

2шт.

9

108132A1

FLANGED BEARING

Hub

2шт.

10

135322A1

BOLT,Spcl, Hex Flg, 5/8" - 11 x 4", Gr 8

2шт.

11

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

12

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

13

108130A1

HUB CAP

2шт.

14

280623

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

8шт.

15

87343998

LOCK NUT

5/16"

8шт.

16

87503466

WHEEL,330.2mm OD x 6.35mm Thk

No Till

2шт.
