Запчасти Case IH 2160 (75.200.AF[01]) - RESIDUE MANAGER DUAL TINE (75) - SOIL PREPARATION

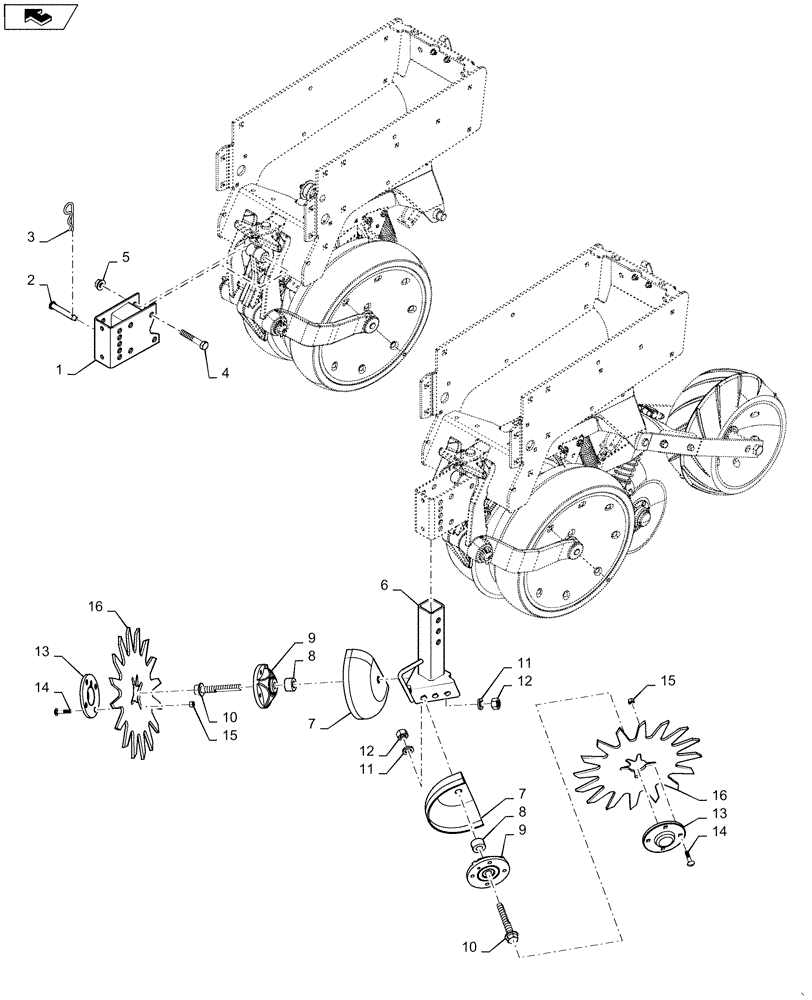

Схема запчастей Case IH 2160 - (75.200.AF[01]) - RESIDUE MANAGER DUAL TINE (75) - SOIL PREPARATION
10
13
11
4
12
15
15
14
14
9
13
5
16
16
7
8
1
11
7
8
10
6
3
12
9
home
2

Артикул

Название

Примечание

Количество

1

90974C1

BRACKET

Tillage Attachment Painted

1шт.

2

147404C1

PIN,12.7mm OD x 83mm L

Pointed

1шт.

3

486830R1

COTTER PIN

1шт.

4

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

5

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

6

87723401

STEM

Attachment

1шт.

7

133801A2

BEARING COVER

Bearing

2шт.

8

108139A1

SPACER

3/4"

2шт.

9

108132A1

FLANGED BEARING

Bearing

2шт.

10

135322A1

BOLT,Spcl, Hex Flg, 5/8" - 11 x 4", Gr 8

.625 x 4 Gr 8

2шт.

11

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

12

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

13

108130A1

HUB CAP

2шт.

14

280623

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

8шт.

15

87343998

LOCK NUT

5/16"

8шт.

16

108131A3

WHEEL,330.2mm OD x 6.35mm Thk

Taper Tooth Spoke

2шт.

Выбрано товаров: 16
