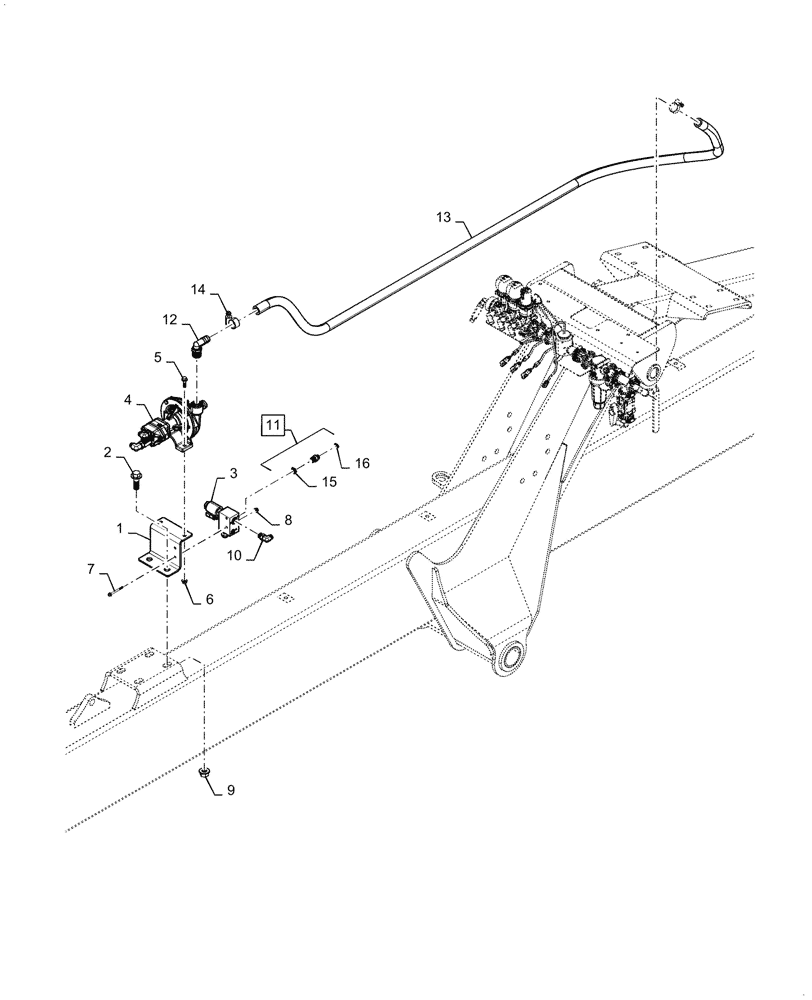

Запчасти Case IH 2160 (63.110.AB[26]) - LIQUID FERTILIZER PUMP AND VALVE, 36 ROW (63) - CHEMICAL APPLICATORS

1

47949589

Pump Mount

1шт.

2

86511853

BOLT,Hex Flg, M20 x 60, 8.8

2шт.

3

419865A1

CONTROL VALVE

Fertilizer

1шт.

4

47733296

HYDRAULIC PUMP

1шт.

5

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

2шт.

6

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

7

87023526

BOLT,M6 x 1.0 x 76.6mm, Cl 8.8

2шт.

8

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

9

86512496

FLANGE NUT,M20 x 2.5, Flg, Cl 8

2шт.

10

84390792

90 ELBOW

1шт.

11

87672176

HYD CONNECTOR

Incl 15, 16

1шт.

12

47796392

FITTING,1" Male Thread x 1" 90 Degree Hose Barb

1шт.

13

134329C3

HOSE

Bulk Cut to Length, 3240mm

1шт.

14

86643166

HOSE CLAMP,#16, 20.6mm - 38.1mm, Type F Worm Gear, W/ Liner

2шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
