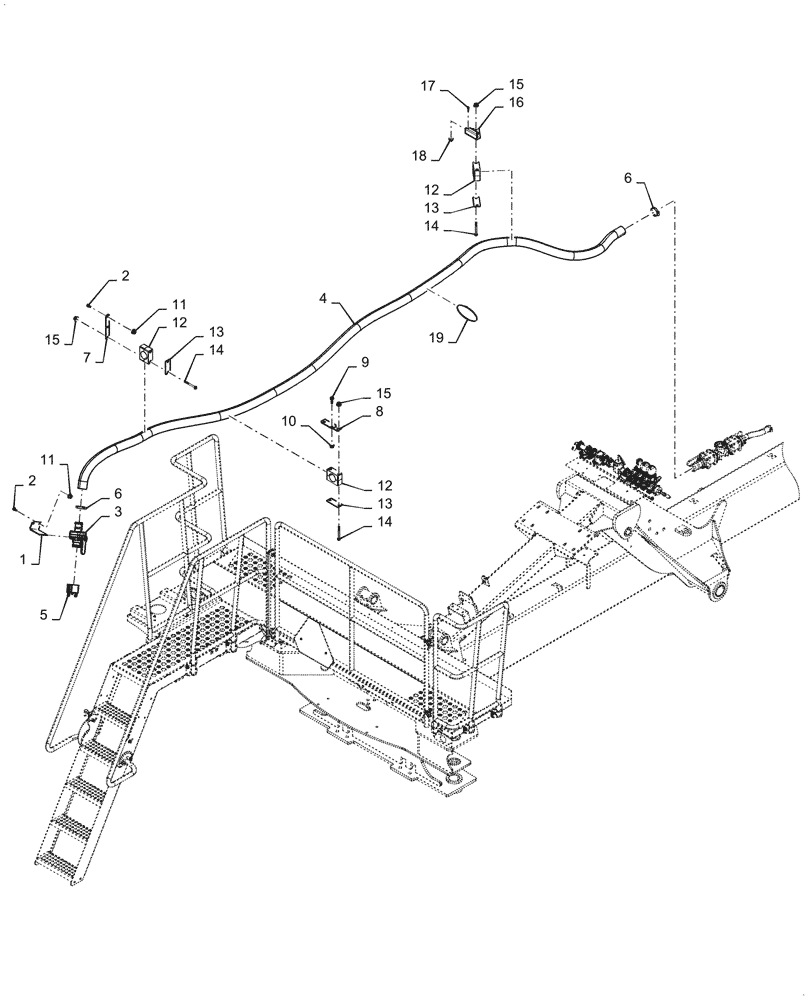

Запчасти Case IH 2160 (63.110.AB[25]) - LIQUID FERTILIZER QUICK FILL 2160 (63) - CHEMICAL APPLICATORS

1

84419010

BRACKET

Ball Valve Red

1шт.

2

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

3

87503192

SHUT-OFF VALVE,2" Valve

2" Stubby

1шт.

4

86988667

HOSE,2.00" ID x 100.00'

Bulk Cut To Length 5520 mm

1шт.

5

405799A1

DUST CAP,2" Cap w/Short Arms

2"

1шт.

6

86637706

HOSE CLAMP,39.6mm - 63.5mm

2шт.

7

47917911

SUPPORT

Quick Fill Red

1шт.

8

47923117

BRACKET

Hose Support Red

1шт.

9

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

1шт.

10

9804279

FLANGE NUT,Hex, M12, Cl 8

1шт.

11

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

12

2928341

HOSE CLIP

Clamp

3шт.

13

47808661

BRACKET

Red

3шт.

14

86624958

BOLT,Hex, M10 x 110mm, Cl 8.8

6шт.

15

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

6шт.

16

48013769

SUPPORT

1шт.

17

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

18

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

19

291207C1

CLAMP

Strap

3шт.
