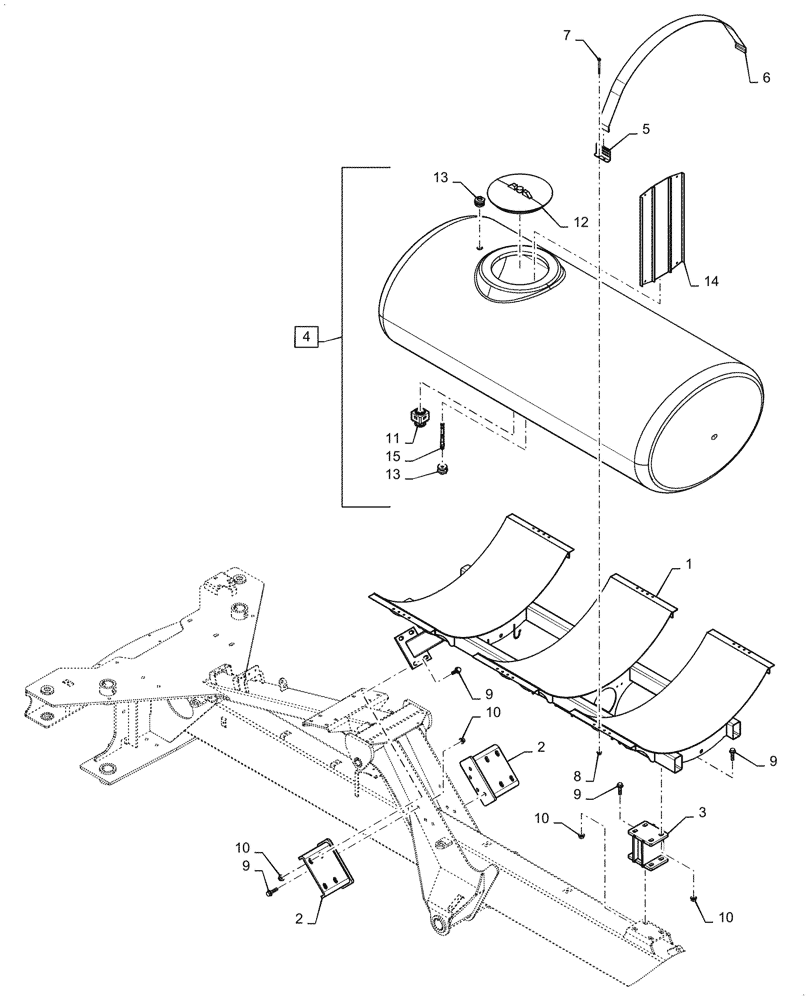

Запчасти Case IH 2160 (63.110.AB[24]) - LIQUID FERTILIZER TANK 600 GALLON 2160 (63) - CHEMICAL APPLICATORS

1

47873146

FRAME

600 Gallon Tank Red

1шт.

2

87691232

SUPPORT

Fertilizer Frame

2шт.

3

84174268

SUPPORT

600 Gallon Tank

1шт.

4

47812941

TANK

600 Gallon Incl 11-15

1шт.

5

87647049

PLATE

Strap Anchor

6шт.

6

87660684

STRAP

Fertilizer Tank

3шт.

7

87681205

BOLT,Hex, M10 X 120, Class 10.9

12шт.

8

86619802

FLANGE NUT,M10 x 1.5, Cl 8

12шт.

9

47506619

BOLT,M20 x 88.9mm OAL, Full Thd, Cl 10.9

24шт.

10

86512496

FLANGE NUT,M20 x 2.5, Flg, Cl 8

24шт.

11

405789A1

FITTING

Bottom Tank

1шт.

12

87628258

LID

Tank

1шт.

13

406148A1

FITTING

3/4" Tank

2шт.

14

NSS

NOT SOLD SEPARAT

Baffle Incl in 4

1шт.

15

86985279

AGITATOR

Tank

1шт.
