Запчасти Case IH 2150 (55.516.AL[03]) - WIRE HARNESS HIGH SPEED ROW UNIT (55) - ELECTRICAL SYSTEMS

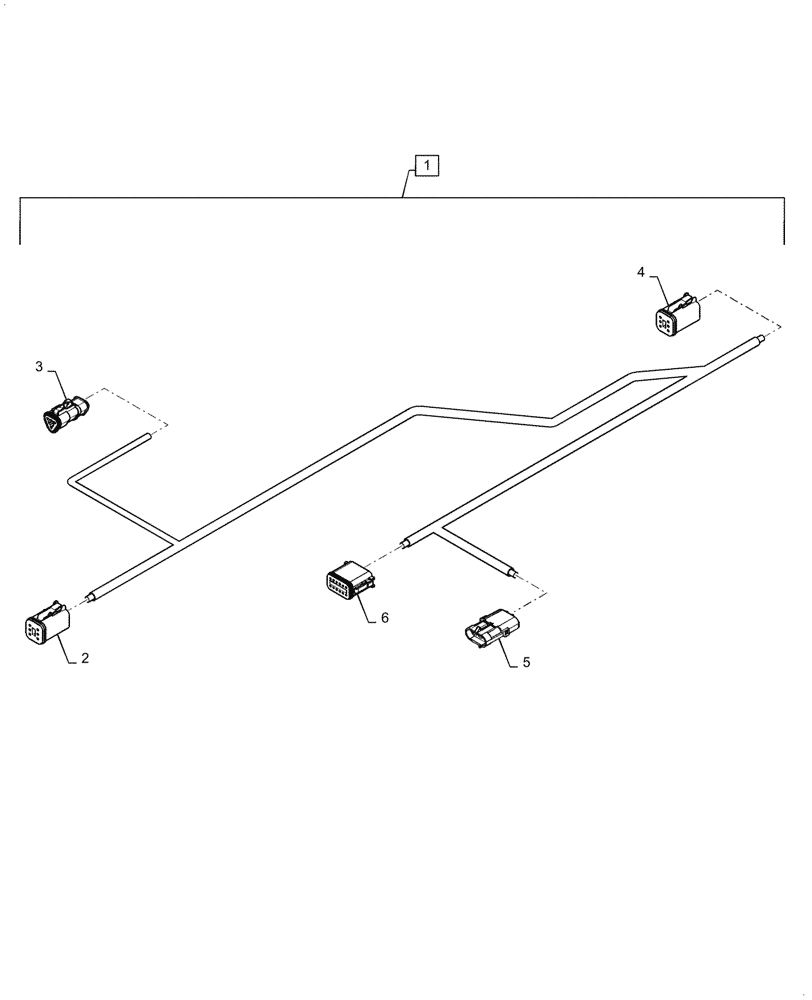

Схема запчастей Case IH 2150 - (55.516.AL[03]) - WIRE HARNESS HIGH SPEED ROW UNIT (55) - ELECTRICAL SYSTEMS
4
6
2
3
5
1

Артикул

Название

Примечание

Количество

1

47599380

WIRE HARNESS

High Speed Row Unit

1шт.

2

87694109

ELEC CONNECTOR

6 Way VDM

1шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Female Tin

6шт.

2

84068583

PLUG,12 - 16 Ga, White

6шт.

2

87694149

ELEC CONNECTOR

Wedge Lock

1шт.

3

84058093

SOCKET

Row Can Terminator

1шт.

3

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

3шт.

3

84068583

PLUG,12 - 16 Ga, White

3шт.

3

84058193

LOCKING TAB,Wedge Lock

Wedge Lock

1шт.

4

87694109

ELEC CONNECTOR

6 Way SBM

1шт.

4

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Femail Tin

6шт.

4

84068583

PLUG,12 - 16 Ga, White

6шт.

4

87694149

ELEC CONNECTOR

Wedge Lock

1шт.

5

87692858

ELEC CONNECTOR,Male

Seed Tube

1шт.

5

87692883

CABLE TERMINAL

Male Tin

3шт.

5

87686742

PLUG

Seal

3шт.

6

87695592

CONTACT HOUSING,Female, 12 Pole

VDM And SBM

1шт.

6

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

12шт.

6

84068583

PLUG,12 - 16 Ga, White

12шт.

6

87695651

LOCKING TAB,Wedge Lock

Lock

1шт.

Выбрано товаров: 20
